WHAT’S IN THE BOX?

The EcoLink solution will ship with the quantity of Meter boxes ordered and the quantity of Gateway’s ordered.

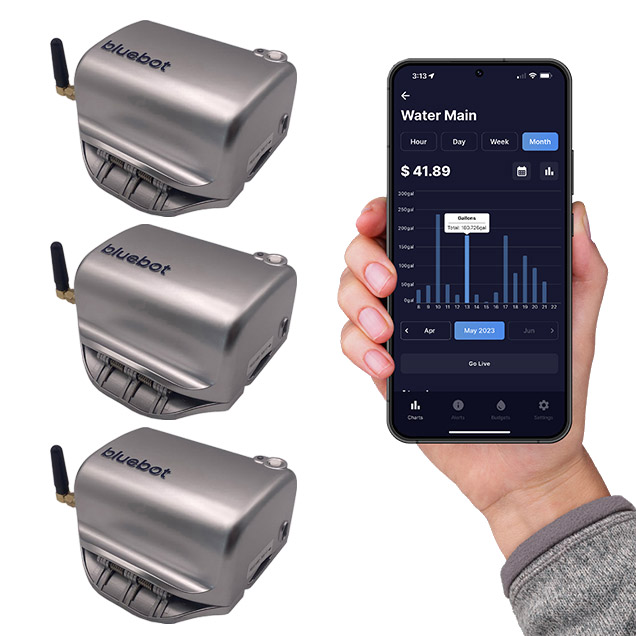

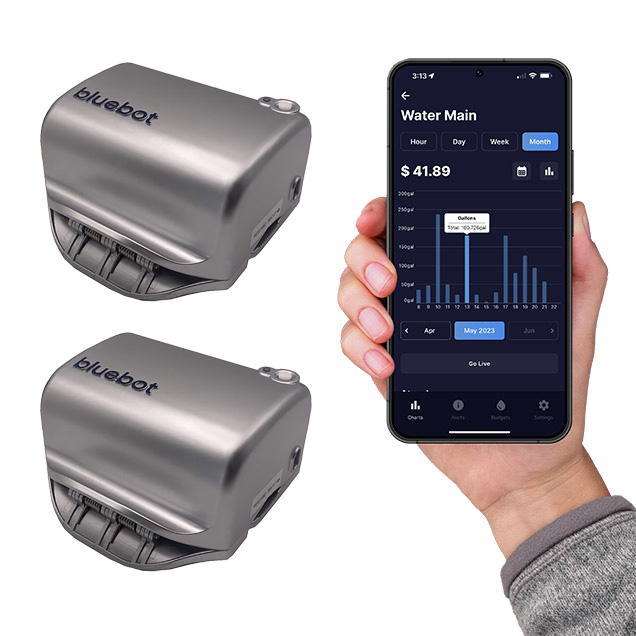

Meter Box: Each EcoLink Bluebot meter ships with everything needed to have a successful installation.

• EcoLink Bluebot smart flow meter
• 10ft (3m) USB-C power cable to power the Meter

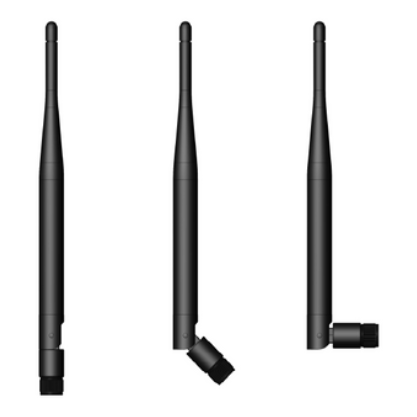

• 1x Antenna for Meter
• C-holders, replacement coupling pads
• Microfiber towel
• Sandpaper disc

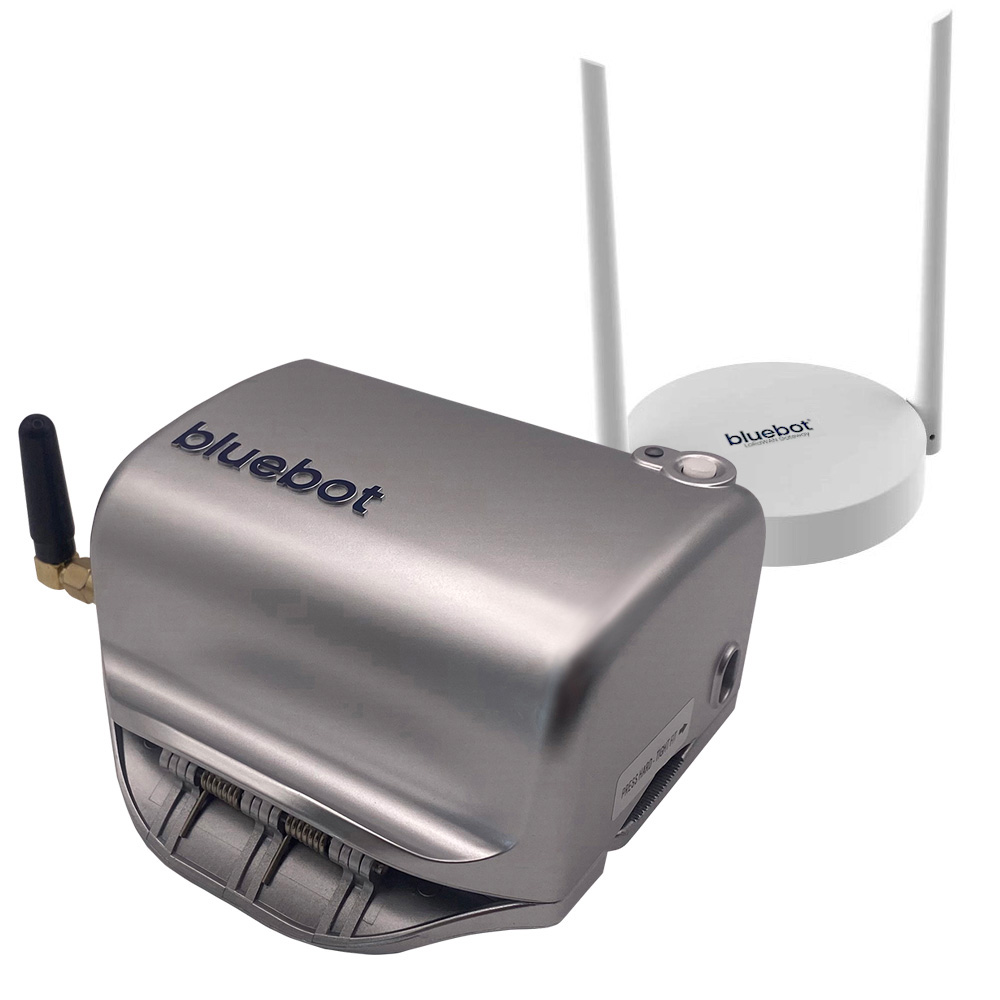

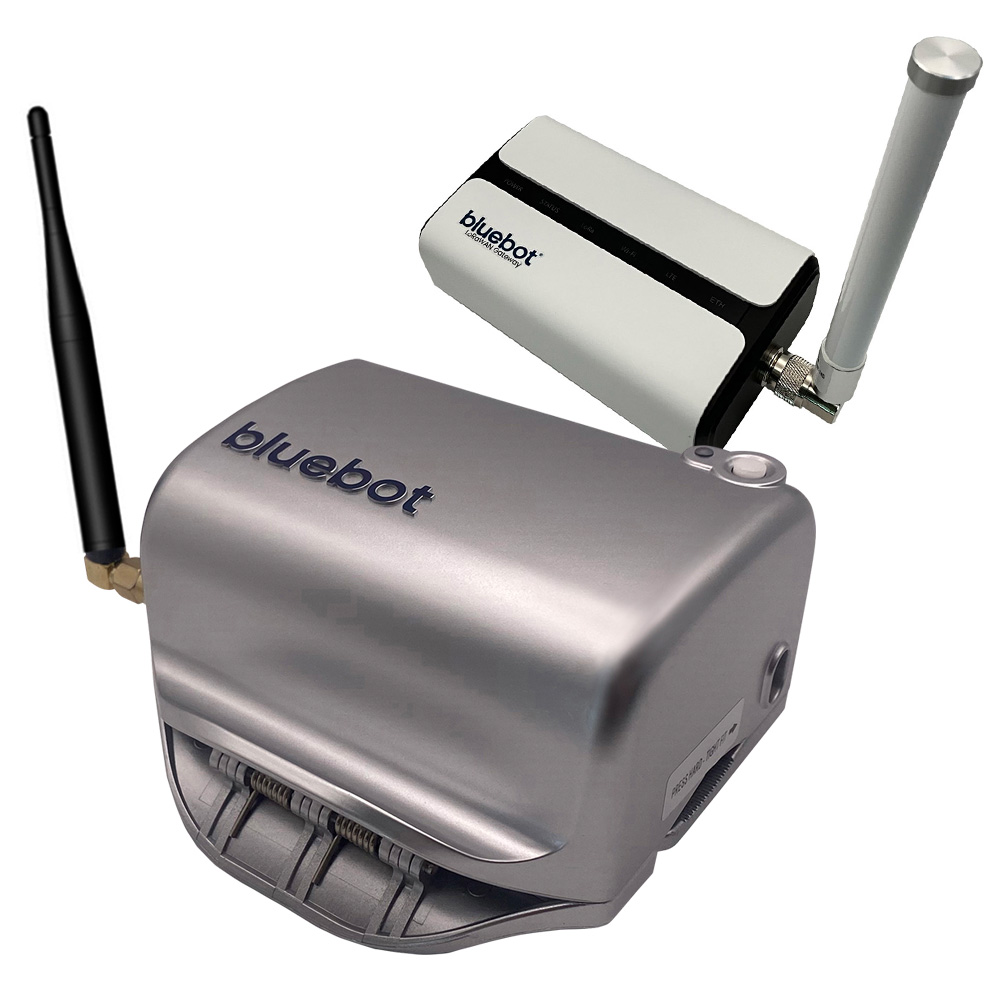

Gateway Box: The EcoLink Gateway ships in a box and includes everything needed for a successful installation and setup.

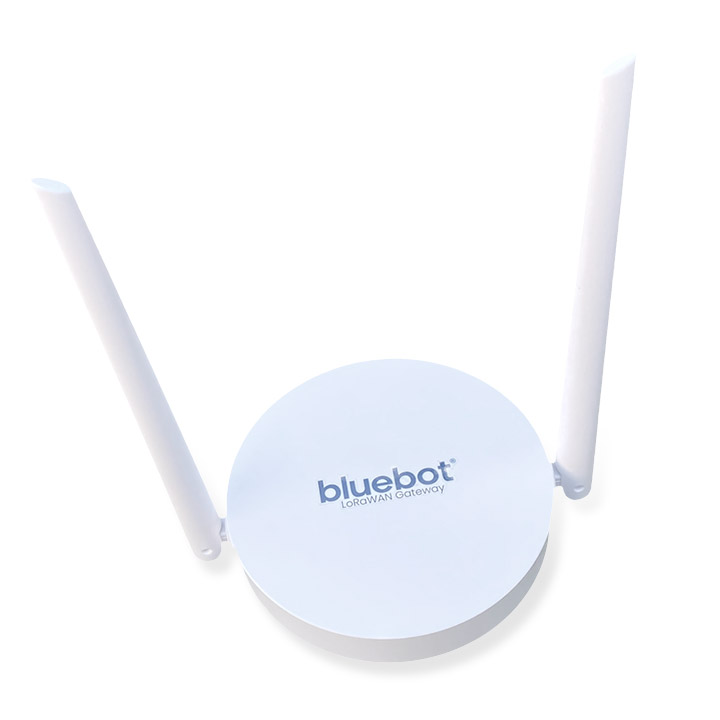

• EcoLink Gateway
• 2x Antennas for Gateway
• Power cable
• Ethernet cable
• Mounting hardware

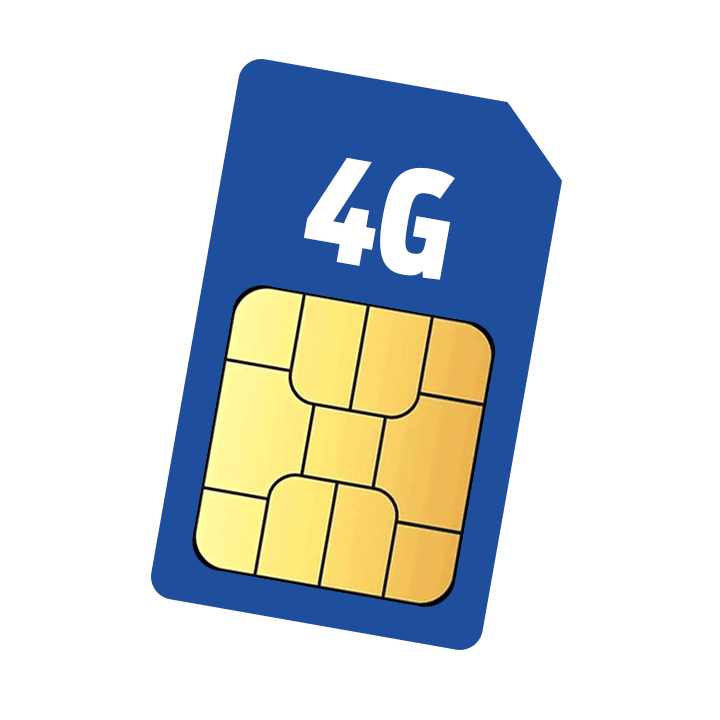

• 4G LTE Sim card (optional purchase)

DOWNLOAD THE APP
Get started today by downloading the bluebot app and creating an account.  Search “bluebot water” in the Apple App Store or Google Play Store.

UNIVERSAL COMPATIBILITY
Bluebot auto-adjusts itself to fit eighty (80) pipe size and type combinations through patented Robot AI servoing guided by the Bluebot mobile App.  As more pipe sizes and types are added in the future, customers get them for free.

Pipe Sizes:
Standard : 3/4”, 1.0”, 1.25”, 1.5”, 2.0”
Large: 2.5”, 3.0”, 4.0” (Special Calibration “Prime Versions”)

Pipe Types: Copper (Type L & M), PVC (Sch. 40 & 80), CPVC (Sch. 40 & 80), PEX, PE, Galvanized, Ductile Iron, Stainless Steel

PERFORMANCE SPECS
Accuracy: +/- 1.0% to 2.0% of flow reading (application, pipe size and type dependent)
Repeatability: +/- 0.2%of flow reading
Low
Flow
Capability: From 0.1 to
0.5 gpm | 0.38 to 1.9 lpm (Pipe size dependent)
High Flow Capability: Maximum
flow
 for
pipe
 size

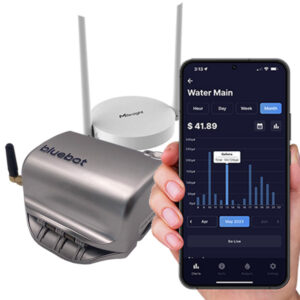

EcoLink LoRaWAN NETWORKING
Data Communication: LoraWAN wireless communication protocol
Flow Meter: No Wi-Fi needed; Meter auto-connects to Gateway
Connection Range: 100s of feet in urban areas
Number of Devices: Connect 10+ devices per Gateway
Number of Locations: Unlimited
LoRaWAN Gateway: Connect to the internet via Ethernet, 3G/4G LTE
LoRa Signal Outage: Meter automatically reconnects to cloud when Signal is restored.

OPERATING SPECS
Measured Fluid: Water / Grey Water
Temperature:
 0°
C
to
50°
C
 |
32°
F
 to
122°
F
Power Supply: Supplied with 10ft (3m) power cable, USA plug /110VAC (No batteries required)
Power Outage: Meter automatically reconnects to cloud when Power is restored.
Meter Input Power: 5V, 1A

INSTALLATION
App: Download the Bluebot App at the Apple App Store or Google Play, Search “bluebot water”
App Guided Commissioning: Appx. 10 min App led;  3-steps 1)
 Survey,
2)
Connect
 to
network,
 3) Clamp
 on
pipe, auto-adjusts and sets
Method:
 Clamp‑on outside of pipe,
 no
pipe
 cutting
 or shutdowns required
Meter Orientation:
 Any
angle,
horizontal, vertical, bi-directional flow

PHYSICAL SPECS
Meter: Ingress rating indoor/outdoor use IP67; Footprint Length 4.13in (105mm); Weight 0.8lbs (0.36kg)
EcoLink LoRaWAN Gateway: Indoor use only IP63

SOFTWARE COMPATIBILITY
Apple Phone/Tablet iOS 14 or newer
Android Phone/Tablet Android OS 12 or newer
Web Dash – All internet browsers

GENERAL
Technology: Transit-Time Ultrasonic
Patented: US
105510231 Adjustable Angle Technology (AAT)
FCC ID: 2AHMR-ESP07S
CE Approved

ABOUT LoRaWAN

LoRa, or Long Range, is a wireless modulation technique derived from Chirp Spread Spectrum (CSS) technology. It encodes information on radio waves using chirp pulses – similar to the way dolphins and bats communicate!

LoRaWAN, or Long Range Wide Area Network, is a wireless communication protocol designed for low-power, long-range communication between devices in the Internet of Things (IoT). LoRaWAN^® is an international, open radio standard, which is managed by the LoRa Alliance^TM.

Bluebot leverages LoRaWAN bidirectional communication, a high level of security through modern encryption technologies and low energy demands to enable efficient and cost-effective connectivity, making it ideal for applications like smart homes, buildings, cities and agriculture as well as industrial IoT.

DATA

Bluebot Smart Flow Cloud: Uses Amazon Web Services (AWS), Manages all data; Serves client Apps; API; S3
Resolution: 42,000 flow data points per day with .000000
six
 decimal
 points
Applications: iOS App,
Android App, Flow Dash, API, S3

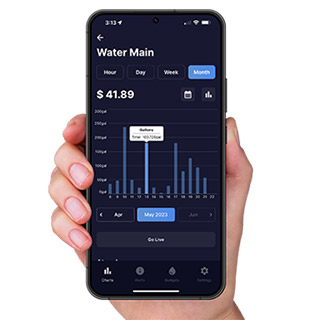

APP FEATURES

• Live Flow: View your flow real-time in a graph
• Dollarize™: Enter your water cost and read your flow in dollars and cents
• Units: Select how you want to see your flow usage –  gallons, liters, or Dollarize™
• Data Retention: Hour, Day, Month graphing, Custom date ranges
• Reports: Download usage reports for analysis (.xls , .csv, .pdf)
• 24/7 Alerts:
 SMS text and Notifications; Flow over time,
 usage volume‑based,
 Dollarize™ based, flow started, flow stopped
• Naming & Grouping: Identify each meter by name/location and add to a group location
• Cost
 Allocation:
 Sub-metering, accounting, budgeting
• Data
access
 sharing:
 TBA
• Diagnostics: Meter health and status
• In-Field adjustment: K-Factor and Zeroing
• Re-Scan: Move meter to a new pipe size and type
• Inclusive
design:
 Color‑blind
 data
 color
 pallet,
 large
 buttons
• API
data
 availability:
 Open
API
for
data
 access
 available
 upon
 request

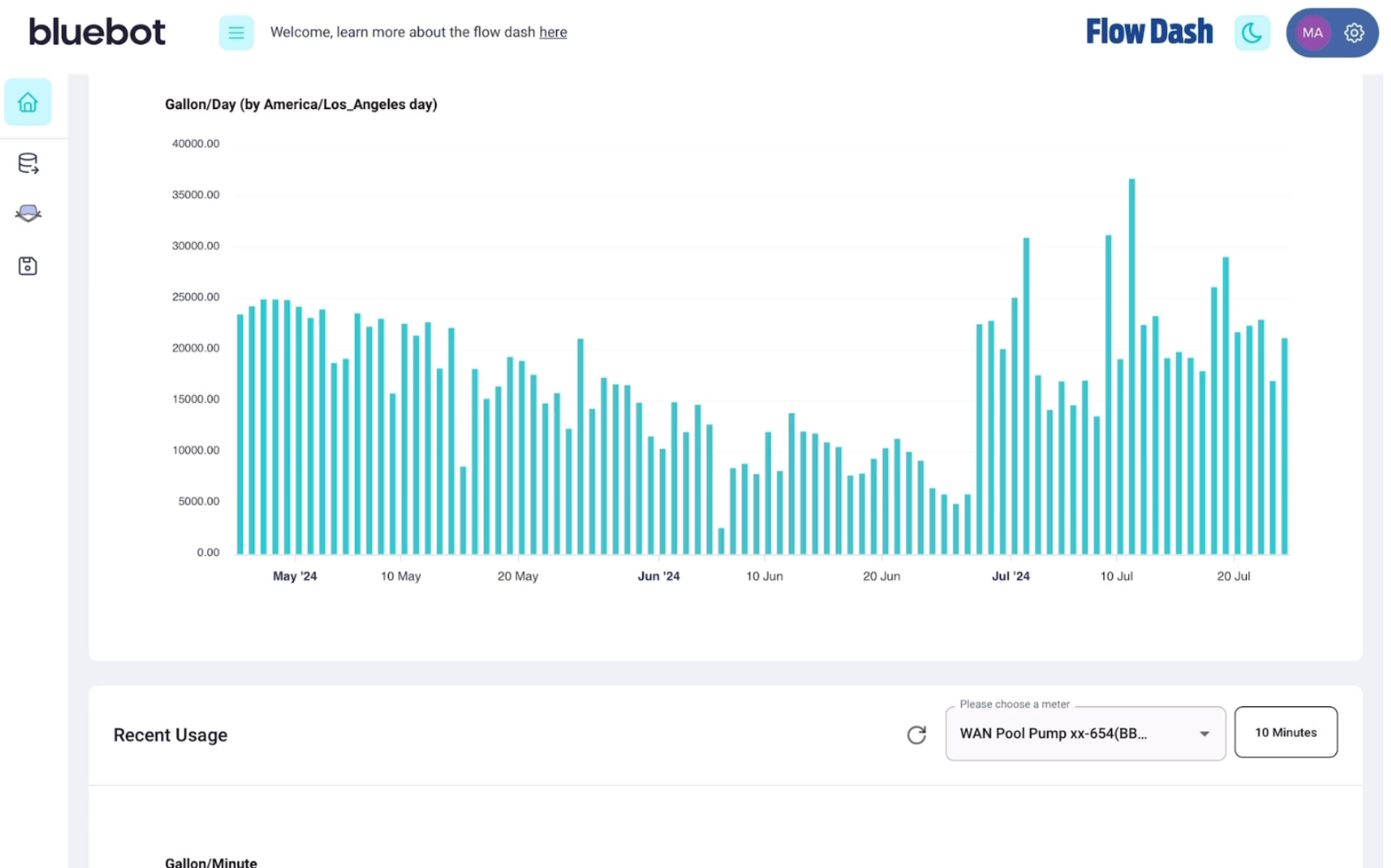

FLOW DASH

The Bluebot Flow Dash complements the Bluebot App and is a web-based control panel for all things Bluebot. Log into the Flow Dash through the Bluebot.com website using the same account credentials as the App.

Features:

1. View live data streaming flow data 24/7
2. View graphs and historical data
3. Analyze your flow data
4. Do account administration
5. Adjust your subscription to select the modules and feature you need
6. Set up Flow API keys
7. Perform historical data downloads
8. View and manage your entire fleet of Bluebot flow devices across all our properties.
9. Access custom modules built for your flow application
10. Manage teams and share access to meters between users

CALIBRATION & DATA QUALITY

Elevate your confidence in Bluebot flow meters through our unwavering commitment to calibration and data quality.

Factory Calibration: Each flow meter undergoes a meticulous 4-point calibration on our NIST traceable primary flow standard, covering its entire flow range. Calibration certificates are available upon request, ensuring transparency and precision.

Network: Before shipment, every flow meter is connected to the Bluebot Smart Flow Cloud™ via an EcoLink LoRaWAN Gateway, guaranteeing optimal networking quality.

K‑Factor
Adjustment:
 App enabled tool to adjust
expected
vs.
 actual
 water
 flow
 usage in the field

Set Zero Point: An app-enabled tool used to eliminate environmental or ultrasonic noise (false flow) if detected, ensuring accurate and reliable data.
