The Bluebot ProLink is built for the toughest connectivity challenges—delivering enterprise-class water monitoring across campuses, industrial sites, and agricultural operations. Using LoRaWAN, ProLink connects up to 100s of Bluebot meters in a single network with line-of-sight reach up to 1.2 miles.
With rugged IP65 protection, optional 4G LTE, and factory pre-configuration, ProLink is ready to deploy at scale. Each meter features Bluebot’s patented AI servoing for universal fit across 80+ pipe types and sizes (¾″–4″).
Perfect for: enterprises, property management, industrial facilities, large-scale irrigation, wells, and remote monitoring.
 |
 |
|
| Feature | Bluebot ProLink with LG-65 & 7.5″ antenna upgrades | Bluebot ProLink (Standard) |
| Positioning | Enterprise-grade | Economical |
| Gateway | LG-65 Gateway (High Performance) | LG-63 Gateway |
| Protocol | LoRaWAN | LoRaWAN |
| Range (Urban) | Thousands of feet | Hundreds of feet |
| Range (Line-of-Sight) | Up to 1.2 miles | 1000’s of feet |
| Meters per Gateway | 50–100+ | 10+ |
| Outdoor Rating | Meter & Gateway: IP65 (Indoor/Outdoor) | Meter IP65 (Indoor/Outdoor) Gateway IP63 (Indoor) |
| Antenna | 7.5″ high-gain, 360° rotational (Longest range) | 1.5″ standard (mid-range) |
| Interface | App, Web browser, API | App, Web browser, API |
| 4G LTE Option | Yes | Yes |
| Mounting Kit Included | Yes | Yes |
| Factory Pre-configured | Yes | Yes |
DATA
Bluebot Smart Flow Cloud: Uses Amazon Web Services (AWS), Manages all data; Serves client Apps; API; S3
Resolution: 43,200 flow data points per day with .000000
six
decimal
points
Applications: iOS App,
Android App, FloDash™, API, S3
APP FEATURES
FloDash™
The Bluebot FloDash complements the Bluebot App and is a web-based control panel for all things Bluebot. Log into the FloDash through the Bluebot.com website using the same account credentials as the App.
Features:

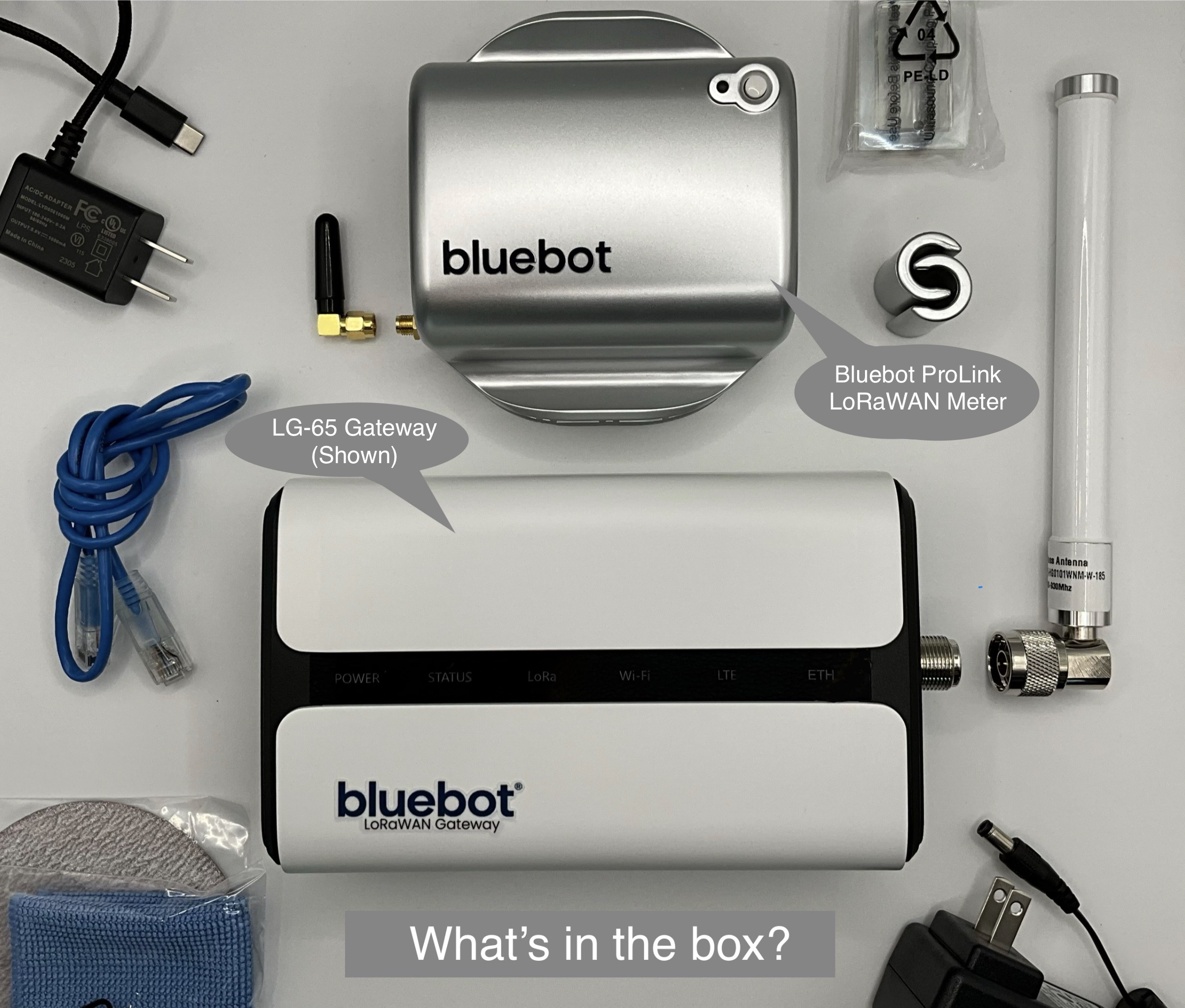

WHAT’S IN THE BOX?
The solution will ship with the quantity of Meter boxes ordered and the quantity of Gateway’s ordered.
Meter Box: Each Bluebot meter ships with everything needed to have a successful installation.
Gateway Box: The ProLink Gateway ships in a box and includes everything needed for a successful installation and setup.
DOWNLOAD THE APP
Get started today by downloading the Bluebot App and creating an account. Search “Bluebot water” in the Apple App Store or Google Play Store.
UNIVERSAL COMPATIBILITY
Bluebot auto-adjusts itself to fit eighty (80) pipe size and type combinations through patented Robot AI servoing guided by the Bluebot mobile App. As more pipe sizes and types are added in the future, customers get them for free.
Pipe Sizes:
Standard : 3/4”, 1.0”, 1.25”, 1.5”, 2.0”
Large: 2.5”, 3.0”, 4.0” (Special Calibration “Prime Versions”)
Pipe Types: Copper (Type L & M), PVC (Sch. 40 & 80), CPVC (Sch. 40 & 80), PEX, PE, Galvanized, Ductile Iron, Stainless Steel
PERFORMANCE SPECS
Accuracy: +/- 1.0% to 2.0% of flow reading (application, pipe size and type dependent)
Repeatability: +/- 0.2%of flow reading
Sensitivity: From 0.1 to
0.5 gpm | 0.38 to 1.9 lpm (Pipe size dependent)
High Flow Capability: Maximum
flow
for
pipe
size
LoRaWAN NETWORKING
Frequency Band Region: US915
Data Communication: LoraWAN wireless communication protocol
Flow Meter: No Wi-Fi needed; Meter auto-connects to Gateway
Connection Range: 100s to 1000s of feet in urban areas; Up
to
1.2mi clear
line
of
sight; add gateways to auto mesh & fill dead spots
Number of Devices: Connect up to 50+ per gateway
Number of Locations: Unlimited
LoRaWAN Gateway: Connect to the internet via Ethernet, 3G/4G LTE; Flow data streamed to cloud
LoRa Signal Outage: Meter automatically reconnects to cloud when signal is restored.
OPERATING SPECS
Measured Fluid: Water / Grey Water
Temperature:
0°
C
to
50°
C
|
32°
F
to
122°
F
Power Supply: Supplied with 10ft (3m) power cable, USA plug /110VAC (No batteries required)
Power Outage: Meter automatically reconnects to cloud when power is restored.
Meter Input Power: 5V, 1A
INSTALLATION
App: Download the Bluebot App at the Apple App Store or Google Play, Search “bluebot water”
App Guided Commissioning: Appx. 10 min App led; 3-steps 1)
Survey,
2)
Connect
to
network,
3) Clamp
on
pipe, auto-adjusts and sets
Method:
Clamp‑on outside of pipe,
no
pipe
cutting
or shutdowns required
Meter Orientation:
Any
angle,
horizontal, vertical, bi-directional flow
PHYSICAL SPECS

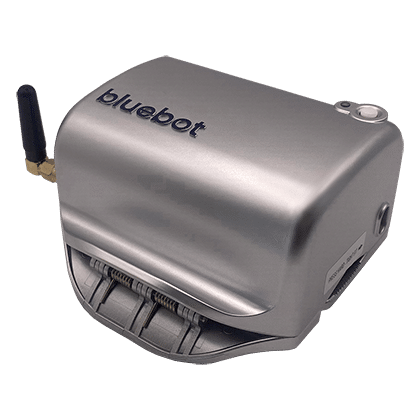

Meter: Ingress rating indoor/outdoor use NEMA 6 / IP67; Footprint Length 4.13in (105mm); Weight 0.8lbs (0.36kg)
Gateway: Indoor/Outdoor IP65
SOFTWARE COMPATIBILITY
Apple Phone/Tablet iOS 14 or newer
Android Phone/Tablet Android OS 12 or newer
Web Dash – All internet browsers
GENERAL
Technology: Transit-Time Ultrasonic
Patented: US
105510231 Adjustable Angle Technology (AAT)
FCC ID: 2AHMR-ESP07S
CE Approved
ABOUT LoRaWAN
LoRa, or Long Range, is a wireless modulation technique derived from Chirp Spread Spectrum (CSS) technology. It encodes information on radio waves using chirp pulses – similar to the way dolphins and bats communicate!
LoRaWAN, or Long Range Wide Area Network, is a wireless communication protocol designed for low-power, long-range communication between devices in the Internet of Things (IoT). LoRaWAN® is an international, open radio standard, which is managed by the LoRa AllianceTM.
Bluebot leverages LoRaWAN bidirectional communication, a high level of security through modern encryption technologies and low energy demands to enable efficient and cost-effective connectivity, making it ideal for applications like smart homes, buildings, cities and agriculture as well as industrial IoT.
CALIBRATION & DATA QUALITY
Elevate your confidence in Bluebot flow meters through our unwavering commitment to calibration and data quality.
Factory Calibration: Each flow meter undergoes a meticulous 4-point calibration on our NIST traceable primary flow standard, covering its entire flow range. Calibration certificates are available upon request, ensuring transparency and precision.
Network: Before shipment, every flow meter is connected to the Bluebot Smart Flow Cloud™ via ProLink LoRaWAN Network, guaranteeing optimal networking quality.
K‑Factor Adjustment: App enabled tool to adjust expected vs. actual water flow usage in the field
Set Zero Point: An app-enabled tool used to eliminate environmental or ultrasonic noise (false flow) if detected, ensuring accurate and reliable data.
