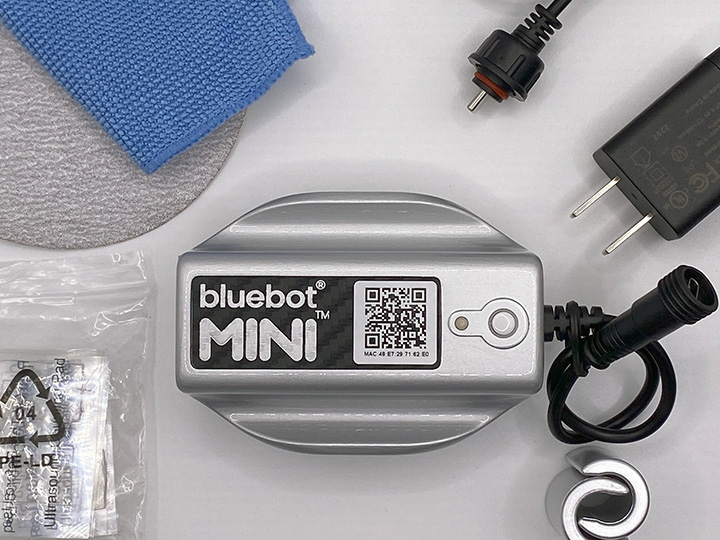

WHAT’S IN THE BOX?

Each Bluebot Mini ships with everything you need to have a successful installation.

• Wi-Fi Bluebot Mini smart flow meter
• 10ft (3m) USB-C power cable wall plug
• 2-wire 24VAC power cable (optional)
• C-holders, replacement coupling pads
• Microfiber towel
• Sandpaper disc
• Pipe size gauge

DOWNLOAD THE APP

Get started today by downloading the Bluebot app and creating an account.  Search “Bluebot water” in the Apple App Store or Google Play Store.

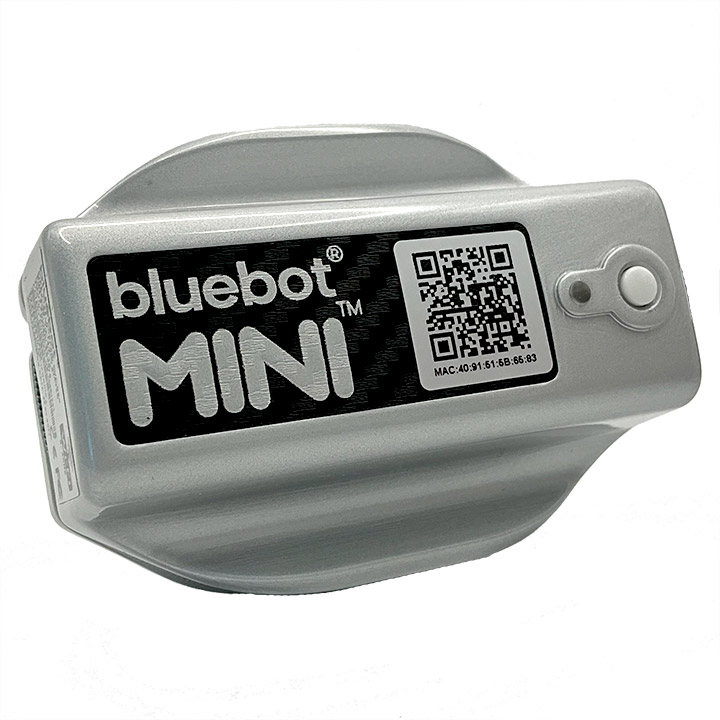

Bluebot MINI 50 Series

Pipe Sizes : 3/4”, 1.0”

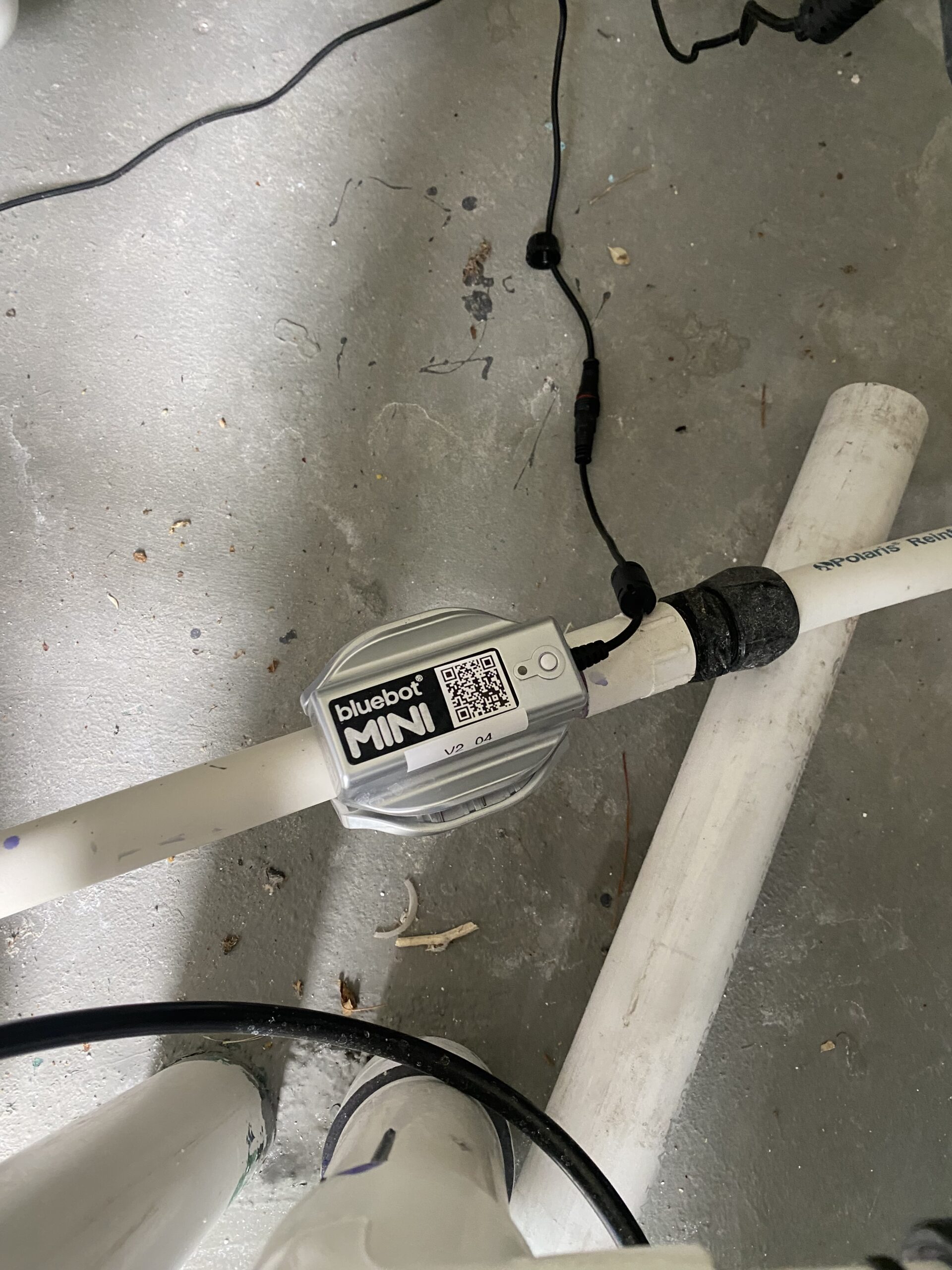

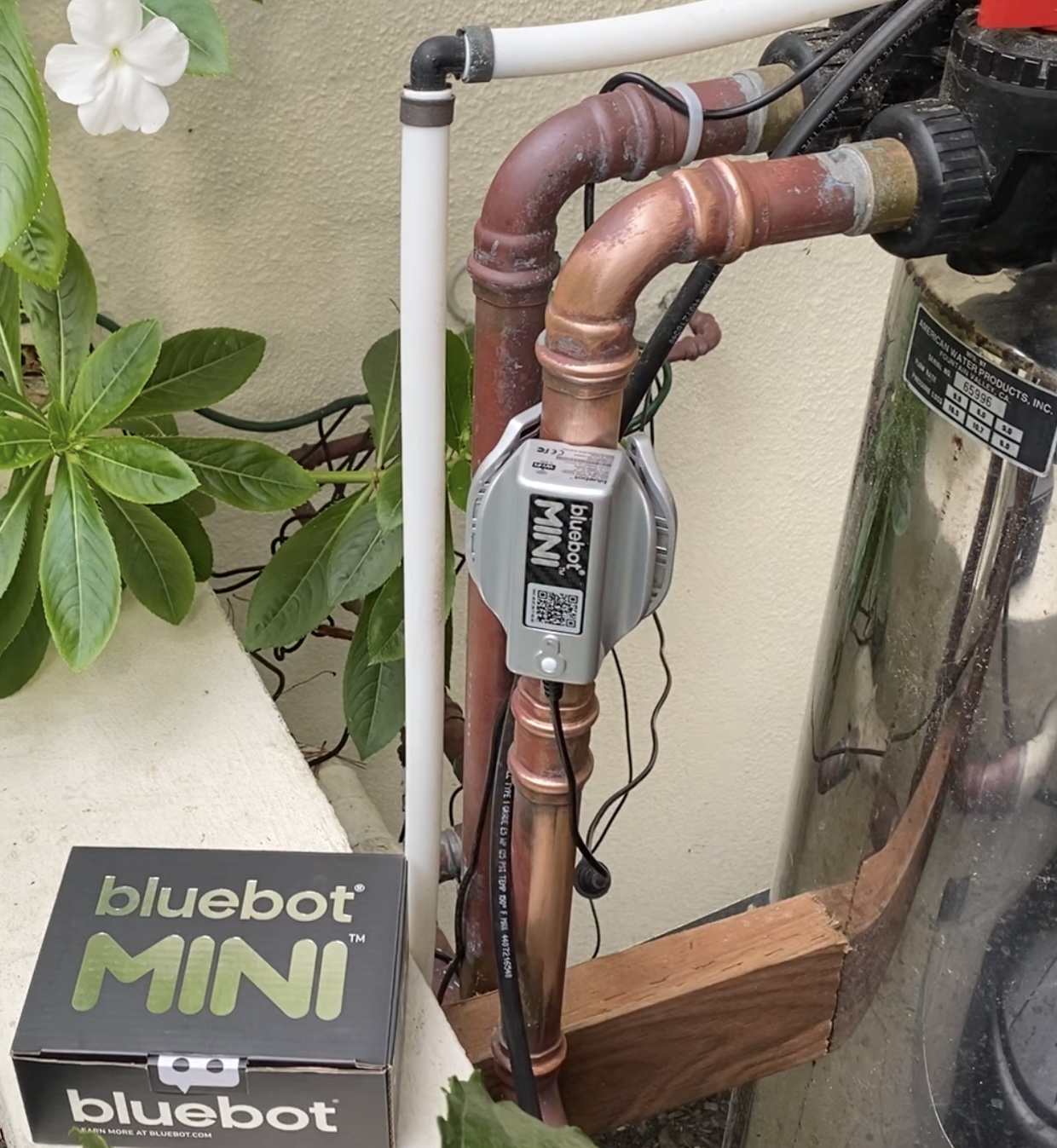

Pipe Types: Copper (Type L & M), PVC (Sch. 40), PEX, Galvanized

For a broader pipe size and type capability, check out the Bluebot 100 Series capable of over 80 pipe sizes and type combinations up to 4.0”.

PERFORMANCE SPECS
Low Flow Sensitivity: From 0.1 to
 0.5 gpm | 0.38 to 1.9 lpm (pipe size dependent)
High Flow Capability: Maximum
flow
 for
pipe
 size

Wi-Fi NETWORKING
Flow Meter Data Communication: 2.4GHz Wi-Fi
Signal: Full bars of signal required during meter Wi-Fi commissioning; Minimum of one bar of signal at meter install location
Connection Range*: Approximately 30ft (9m), strong Wi-Fi signal required
Number of Devices: Unlimited
Number of Locations: Unlimited
Wi-Fi Signal Outage: Meter automatically reconnects to cloud when Signal is restored.

*See Bluebot Ecolink solutions for longer internet connection ranges up to 1000Ft (305M); 1.2MI (1.93KM) line of sight.

OPERATING SPECS
Measured Fluid: Water / Grey Water
Temperature:
 0°
C
to
50°
C
 |
32°
F
 to
122°
F
Power Supply:

• 10ft (3m) power cable, USA plug /110VAC (No batteries required)
• 2-wire 24VAC power cord also included

Power Outage: Meter automatically reconnects to cloud when Power is restored.
Meter Input Power: 5V, 1A

INSTALLATION
App: Download the Bluebot App at the Apple App Store or Google Play, Search “Bluebot water”
App Guided Commissioning: Appx. 10min App led;  3-steps: 1)
 Survey,
2)
 Connect
to
network,
 3) Clamp
on
pipe, auto-adjusts and sets

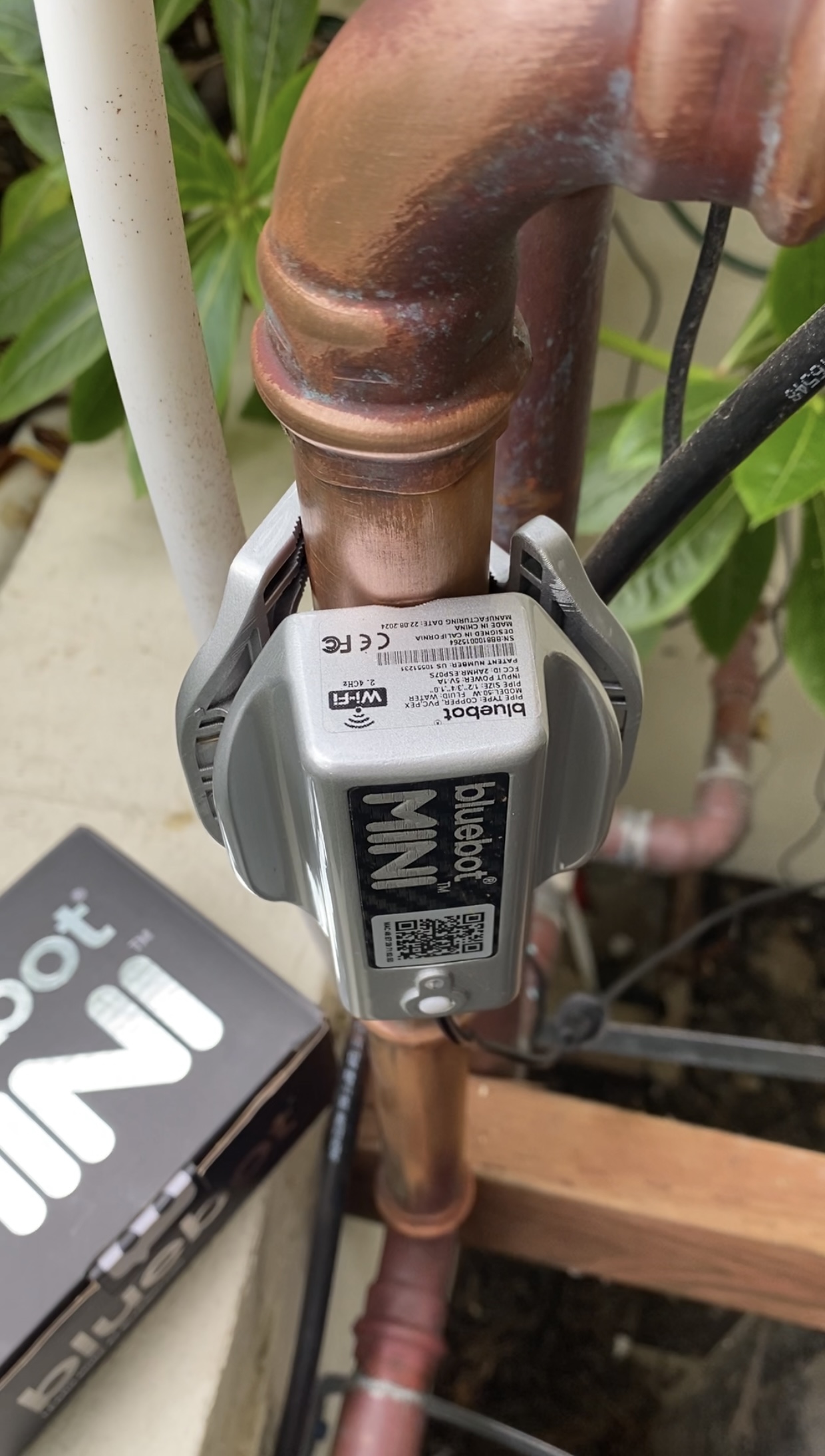

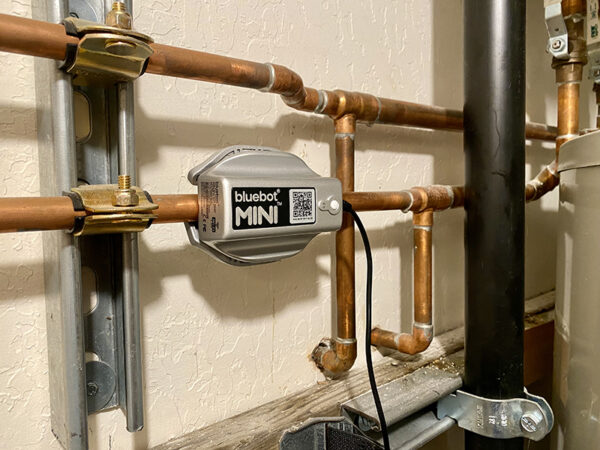

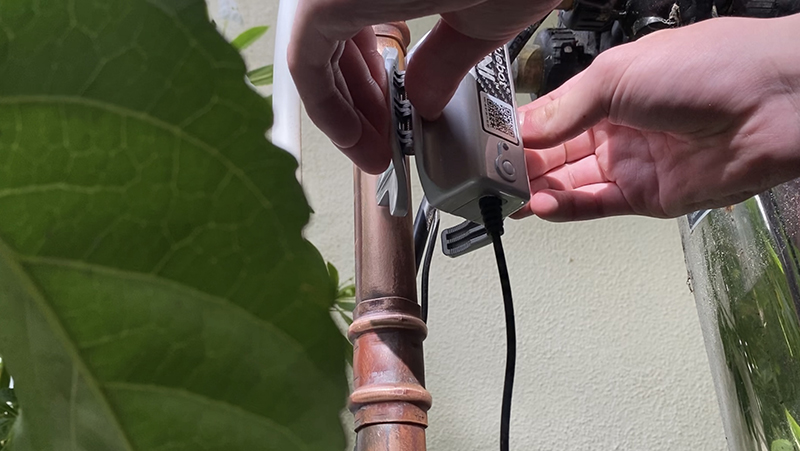

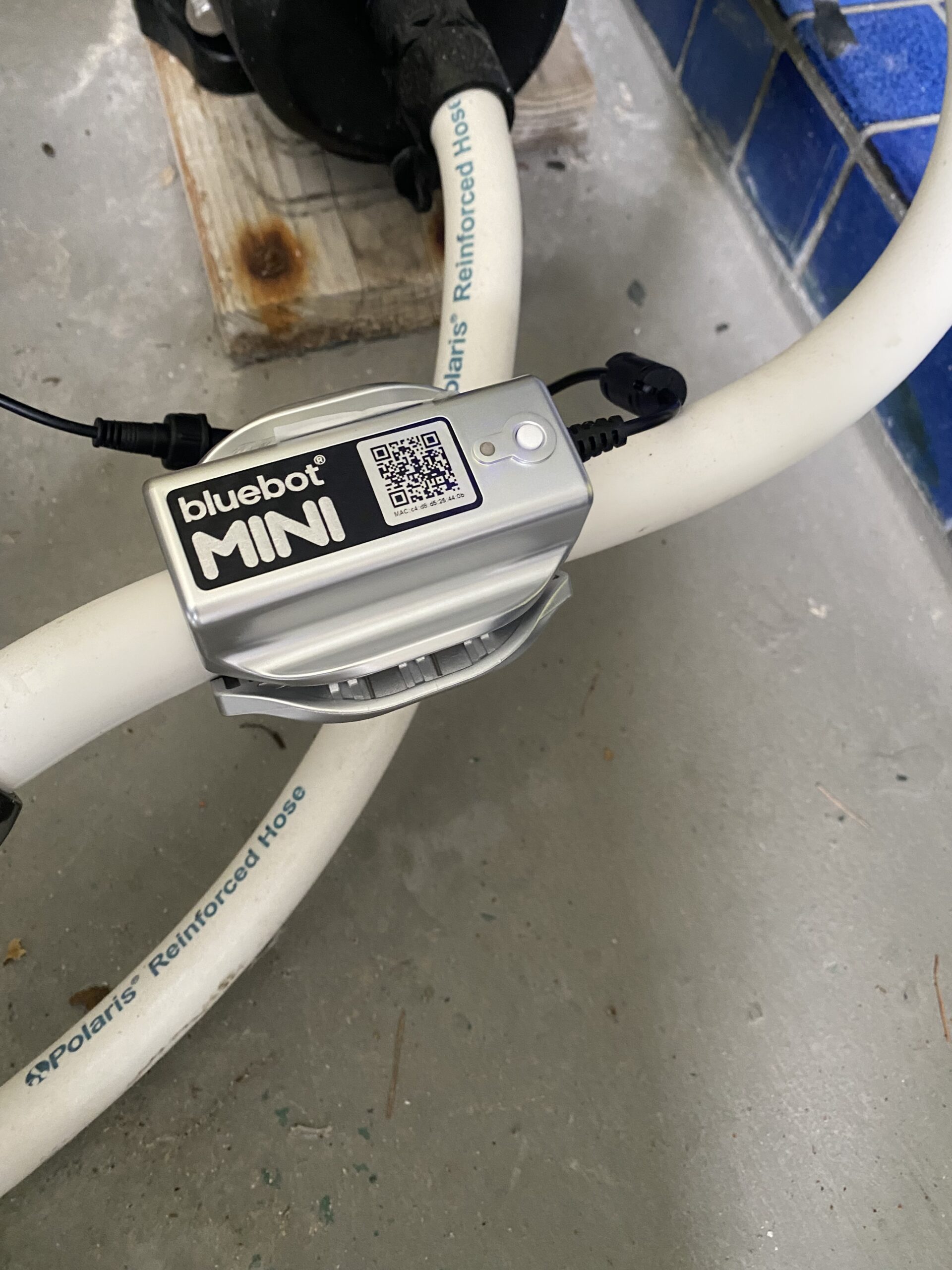

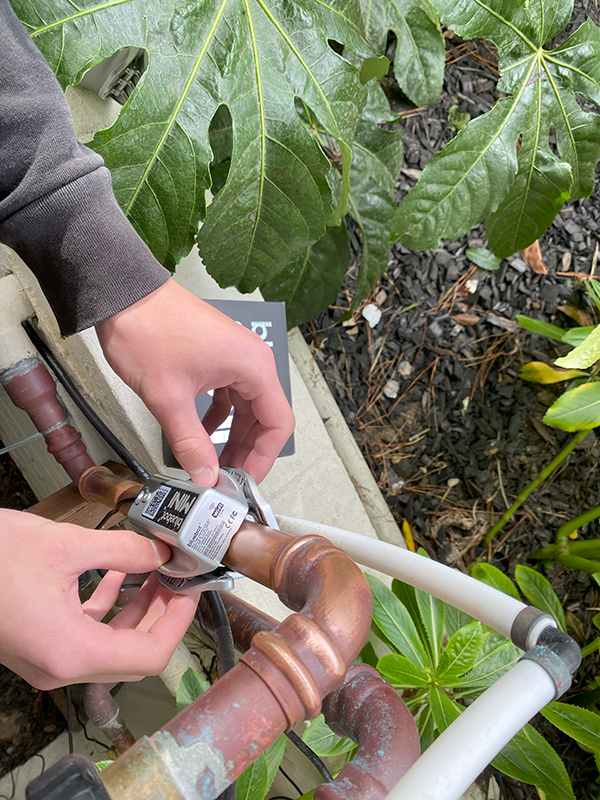

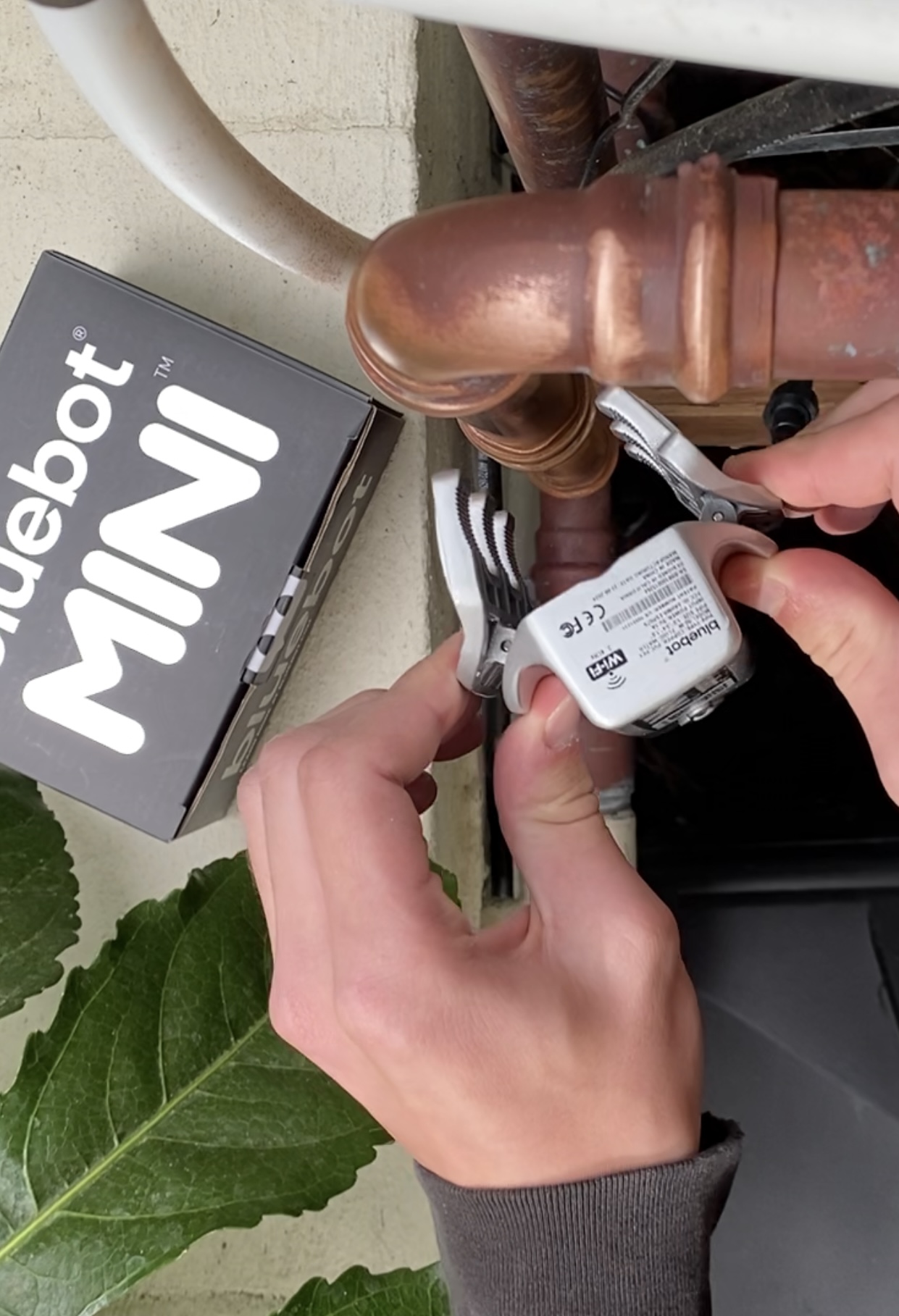

Method:
 Clamp‑on outside of pipe,
 no
pipe
 cutting
or shutdowns required

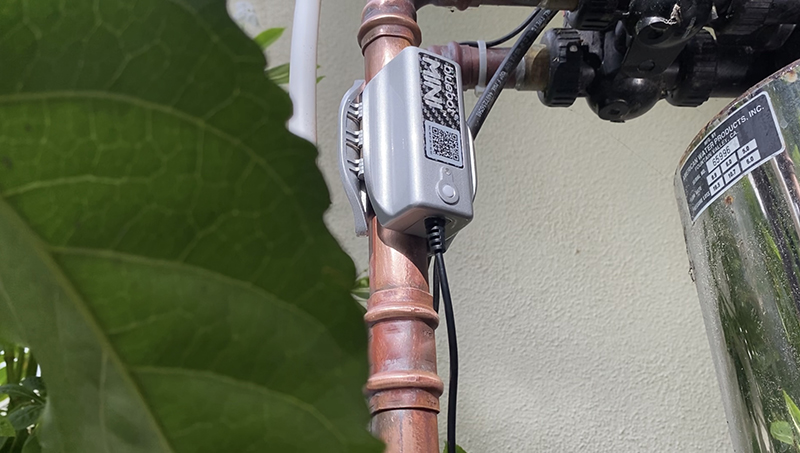

Meter Orientation:
 Any
angle,
 horizontal, vertical, bi-directional flow

PHYSICAL SPECS

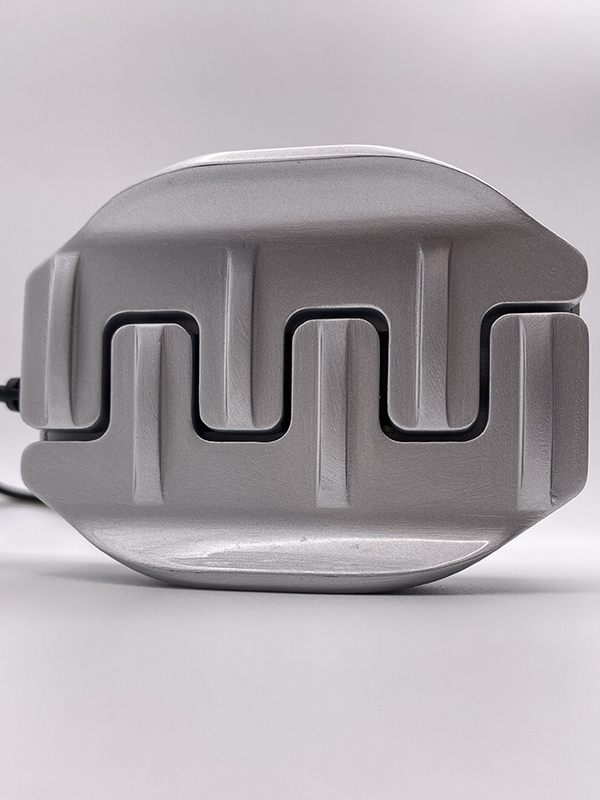

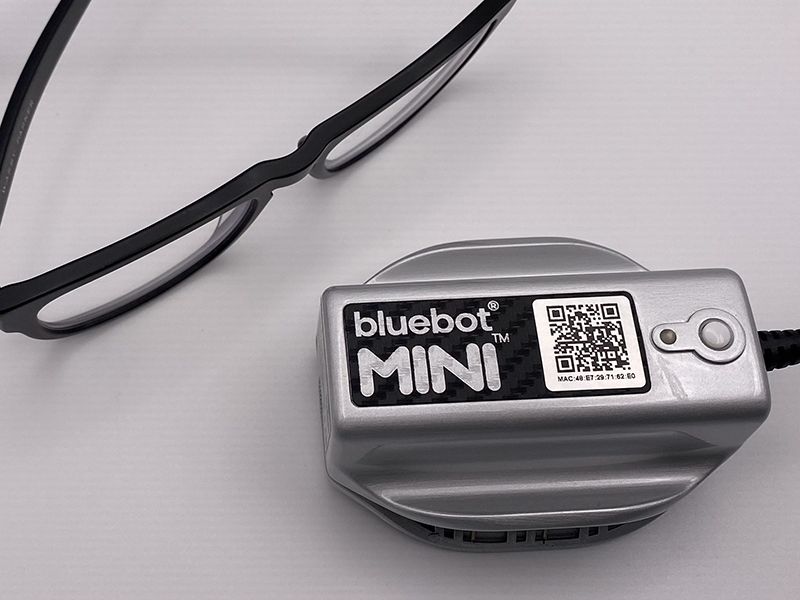

Meter: Ingress rating indoor/outdoor use IP68; Footprint Length 3.5in (88mm); Weight 0.35lbs (0.16kg)

SOFTWARE COMPATIBILITY
Apple Phone/Tablet iOS 14 or newer
Android Phone/Tablet Android OS 12 or newer
Flow Dash – All internet browsers

GENERAL
Technology: Transit-Time Ultrasonic
Patented: US
105510231 Adjustable Angle Technology (AAT)

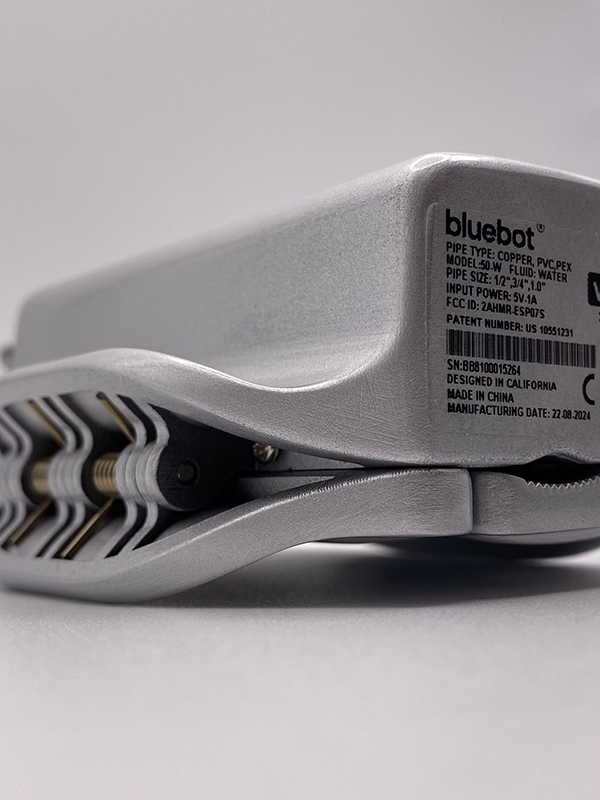

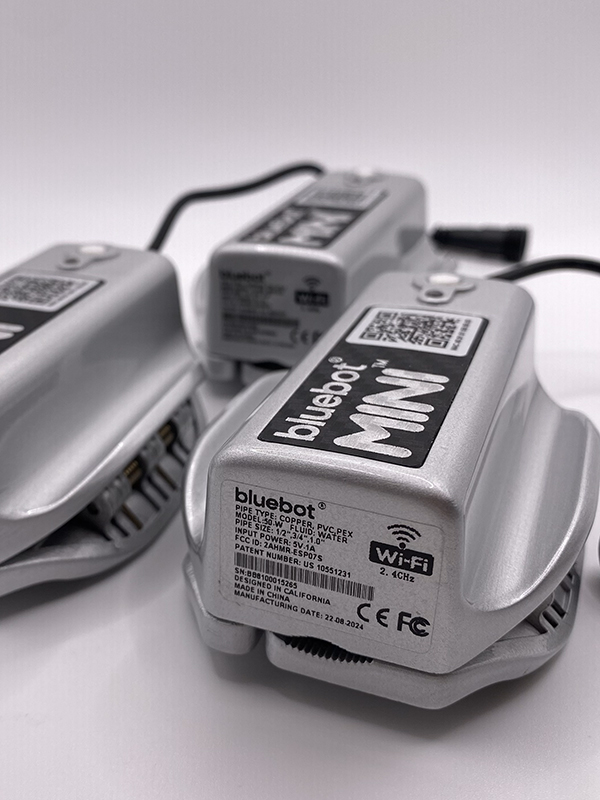

FCC ID: 2AHMR-ESP07S
CE Approved

DATA

Bluebot Smart Flow Cloud: Uses Amazon Web Services (AWS), Manages all data; Serves client Apps; API; S3
Resolution: 42,000 flow data points per day with .000000
six
 decimal
 points
Applications: iOS App,
 Android App, Flow Dash, API, S3

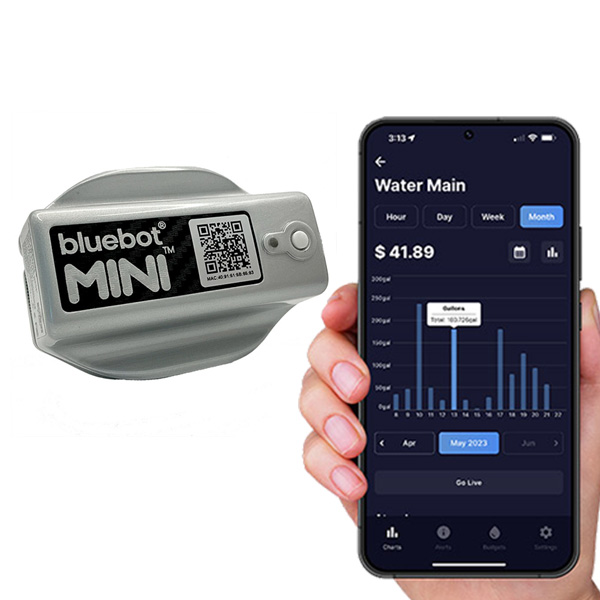

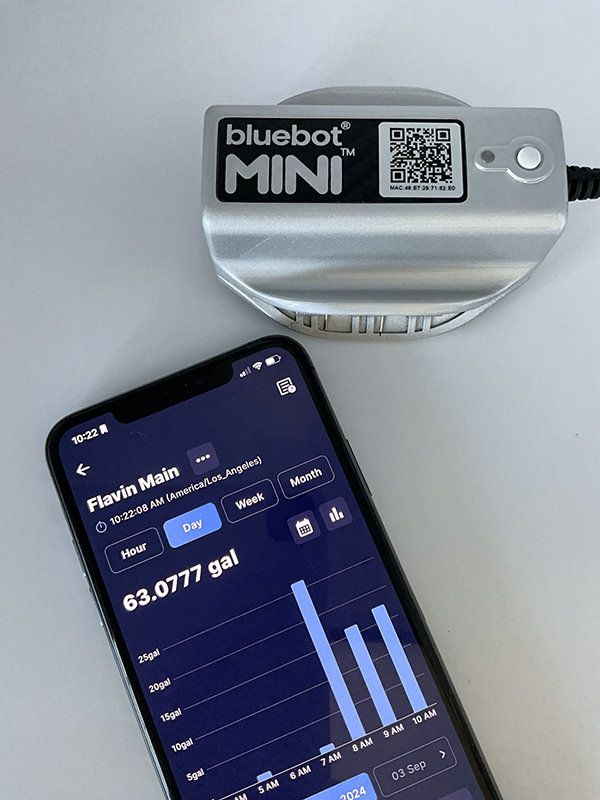

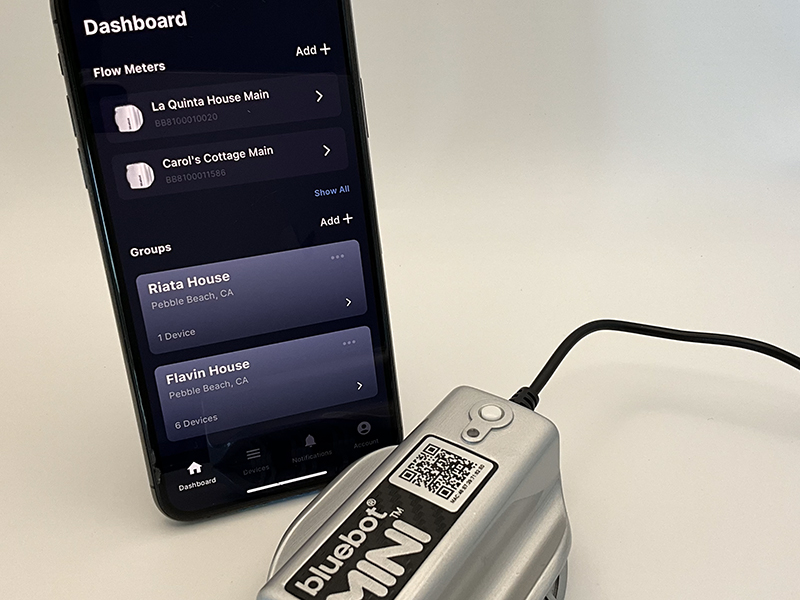

APP FEATURES

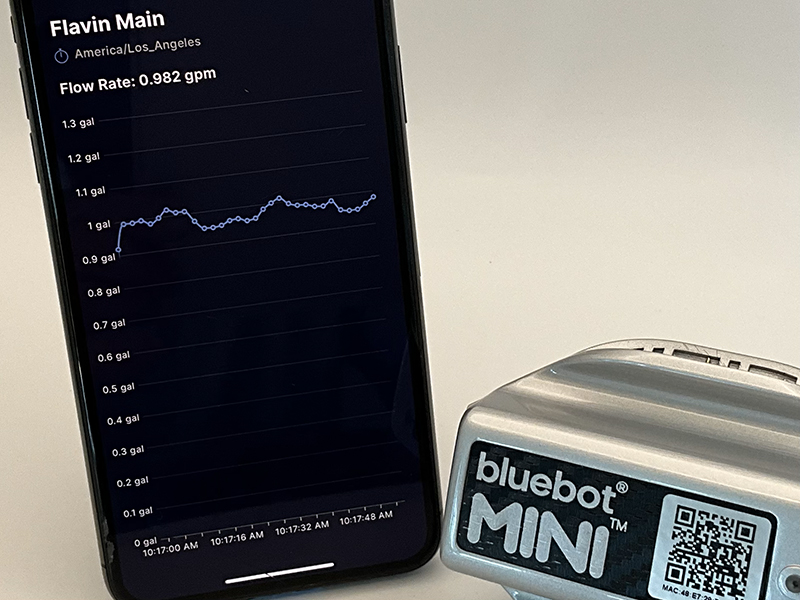

• Live Flow: View your flow real-time in a graph
• Dollarize™: Enter your water cost and read your flow in dollars and cents
• Units: Select how you want to see your flow usage –  gallons, liters ,or Dollarize™
• Data Retention: Hour, Day, Month graphing, Custom date ranges
• Reports: Download usage reports for analysis (.xls , .csv, .pdf)
• 24/7 Alerts:
 SMS text and Notifications; Flow over time,
 usage volume‑based,
 Dollarize™ based, flow started, flow stopped
• Naming & Grouping: Identify each meter by name/location and add to a group location
• Cost
 Allocation:
 Sub-metering, accounting, budgeting
• Data
access
 sharing:
 TBA
• Diagnostics: Meter health and status
• In-Field adjustment: K-Factor and Zeroing
• Re-Scan: Move meter to a new pipe size and type
• Inclusive
design:
 Color‑blind
 data
 color
 pallet,
 large
 buttons
• API
data
 availability:
 Open
API
for
data
 access
 available
 upon
 request

FLOW DASH

The Bluebot Flow Dash complements the Bluebot App and is a web-based control panel for all things Bluebot. Log into the Flow Dash through the Bluebot.com website using the same account credentials as the App.

Features:

1. View live data streaming flow data 24/7
2. View graphs and historical data
3. Analyze your flow data
4. Do account administration
5. Adjust your subscription to select the modules and feature you need
6. Set up Flow API keys
7. Perform historical data downloads
8. View and manage your entire fleet of Bluebot flow devices across all our properties.
9. Access custom modules built for your flow application
10. Manage teams and share access to meters between users

CALIBRATION & DATA QUALITY

Elevate your confidence in Bluebot flow meters through our unwavering commitment to calibration and data quality.

Factory Calibration: Each flow meter undergoes a meticulous 4-point calibration on our NIST traceable primary flow standard, covering its entire flow range. Calibration certificates are available upon request, ensuring transparency and precision.
Meter Tuning: Meter self tunes via the Bluebot Flow Smart Cloud™ to improve performance after comissioning.
Network: Before shipment, every flow meter is connected to the Bluebot Smart Flow Cloud™ via a Wi-Fi network, guaranteeing optimal networking quality.
K‑Factor
Adjustment:
 App enabled tool to adjust
expected
vs.
 actual
 water
 flow
 usage in the field
