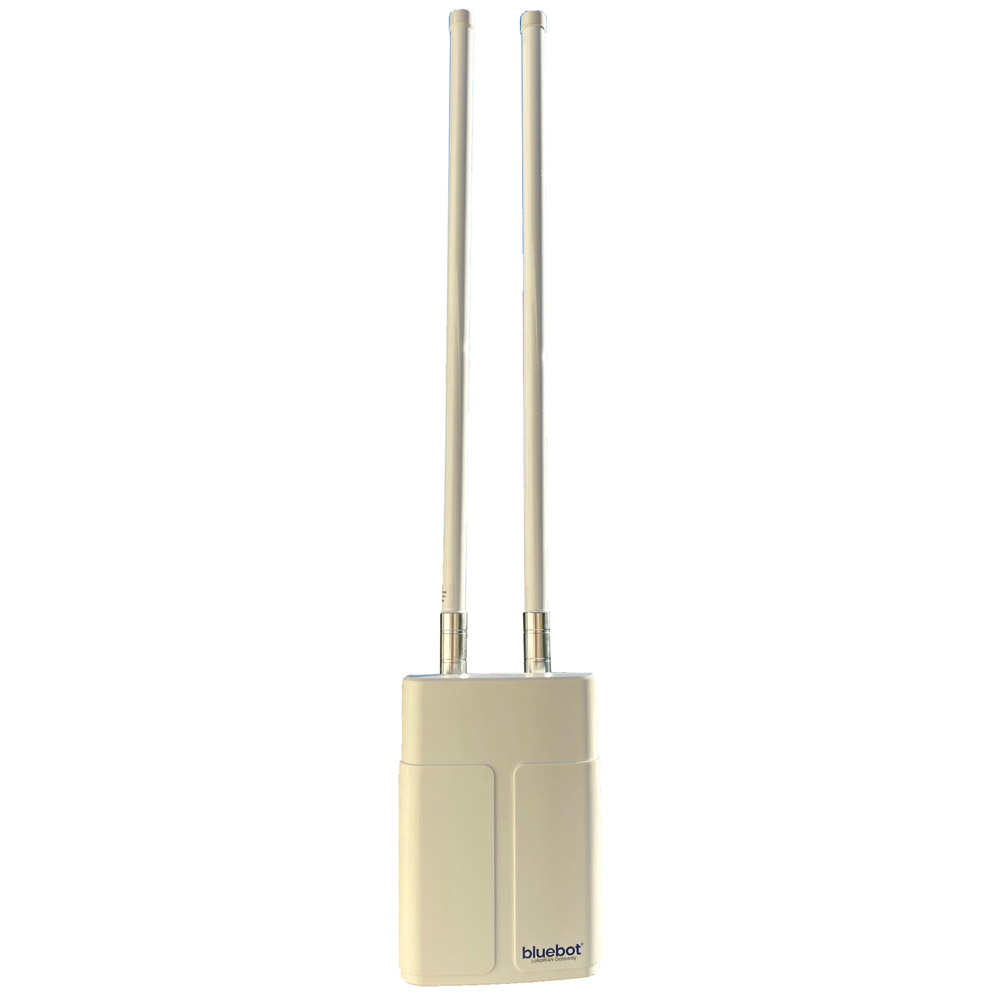

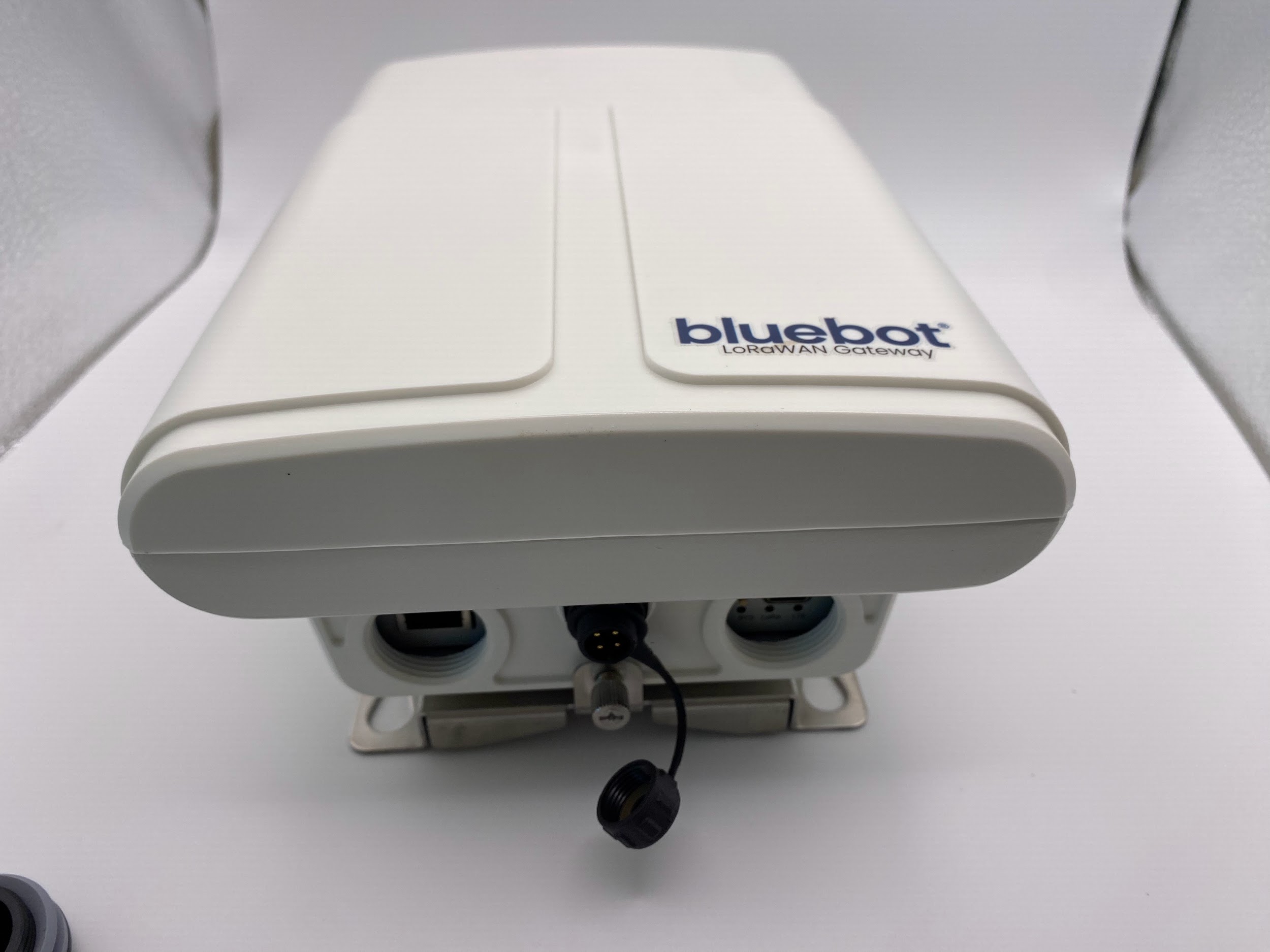

• Highest-Performance Industrial LoRaWAN Gateway

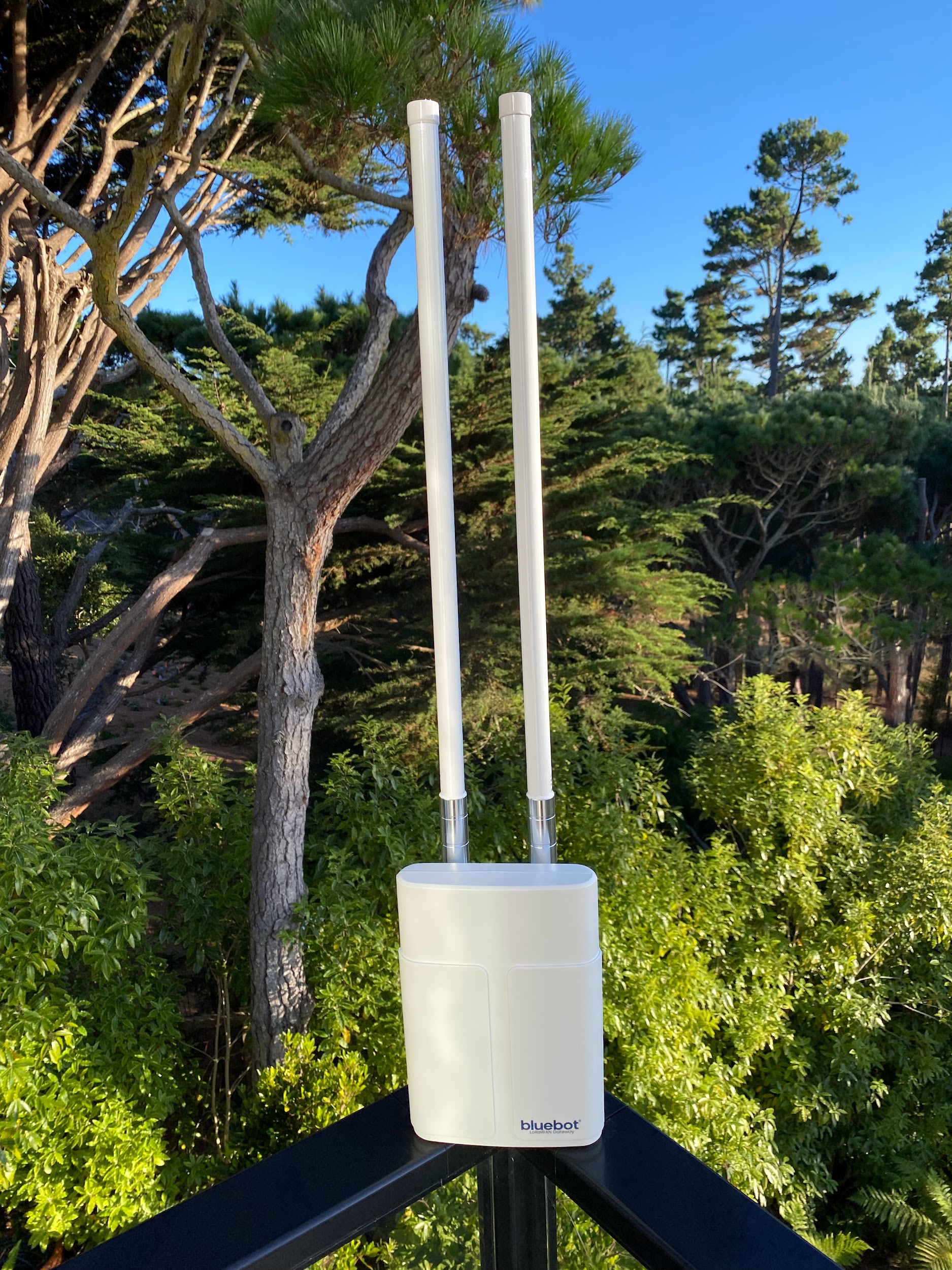

• Waterproof Outdoor (IP-67)

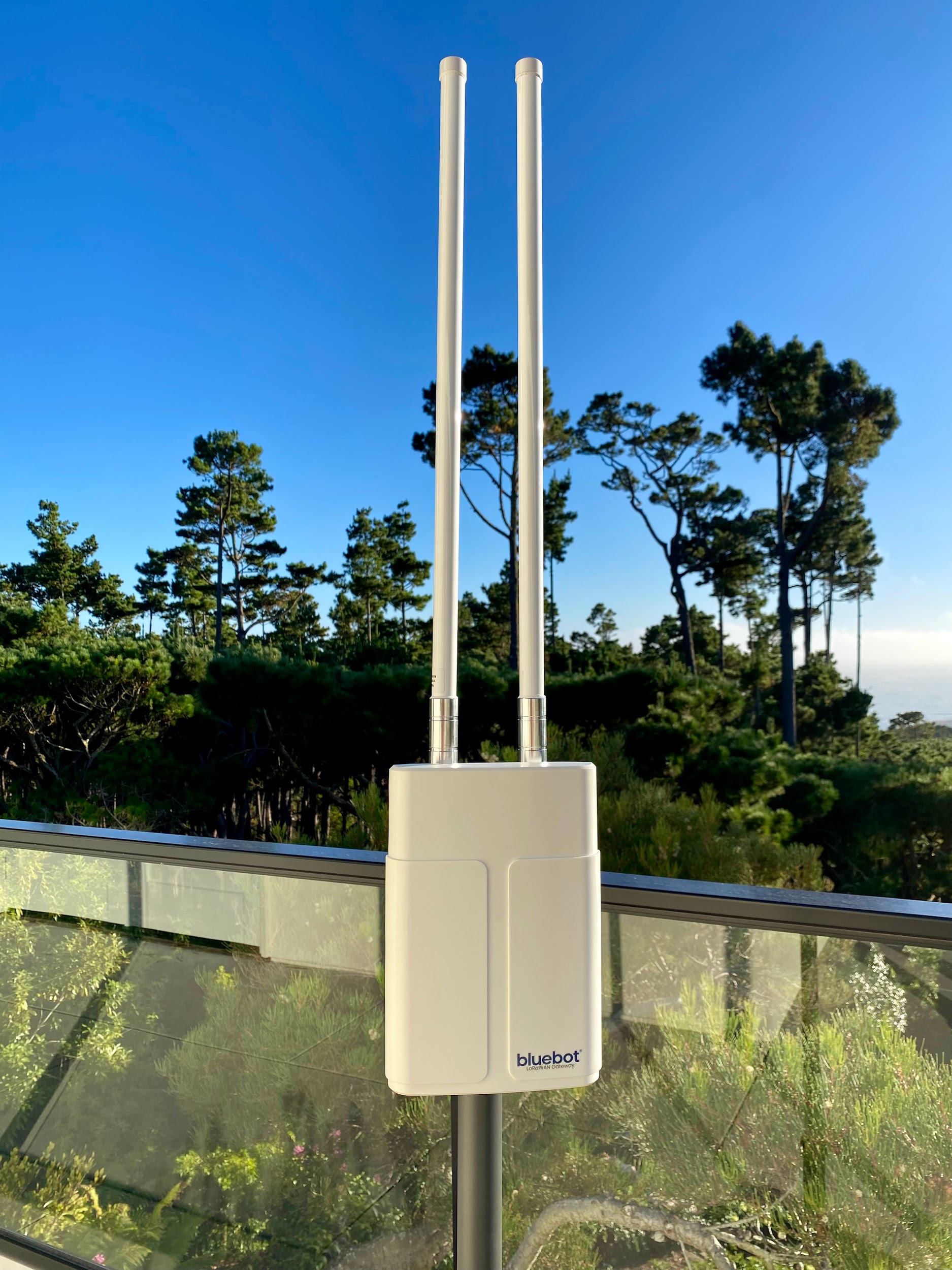

• Compact size, come with mounting kit for wall or pole mount

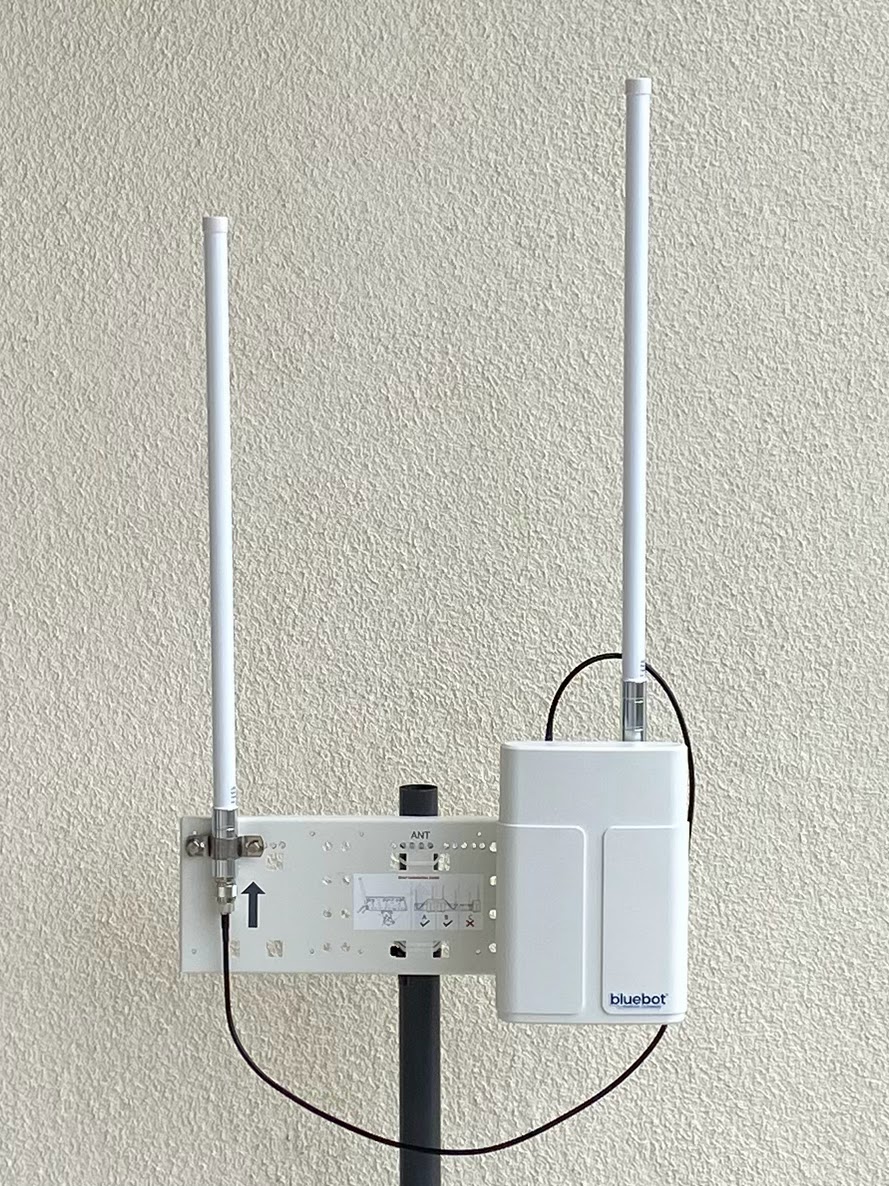

• Two single long-range, dual or remote mount 23″ antennas
• Factory Pre-configured for Bluebot
• No Wi-Fi needed at meter location

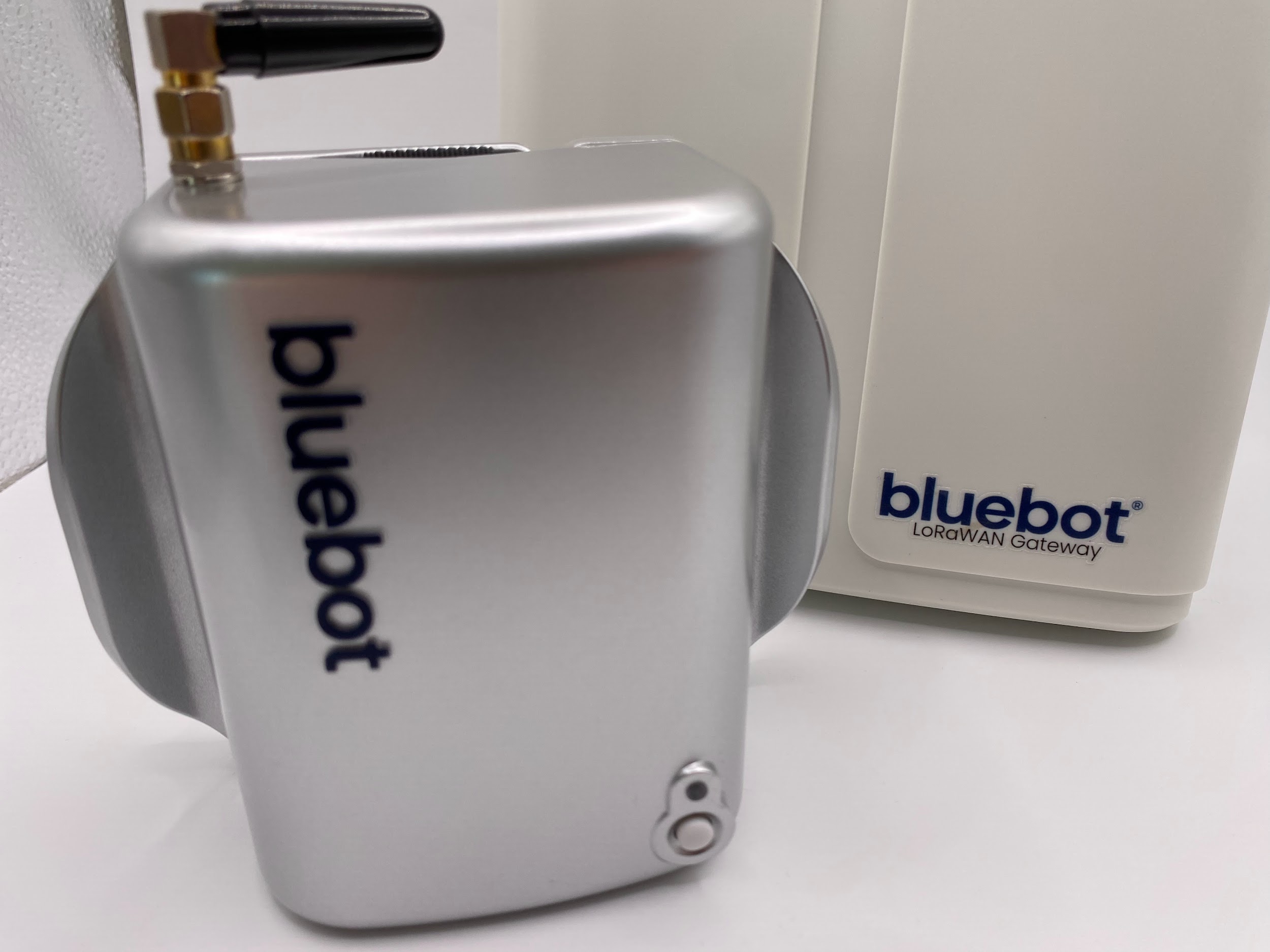

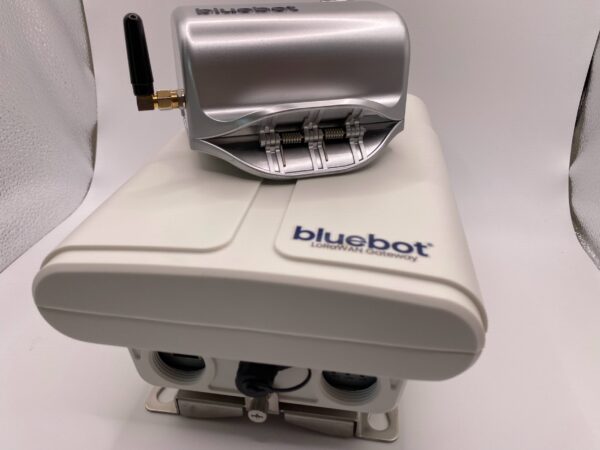

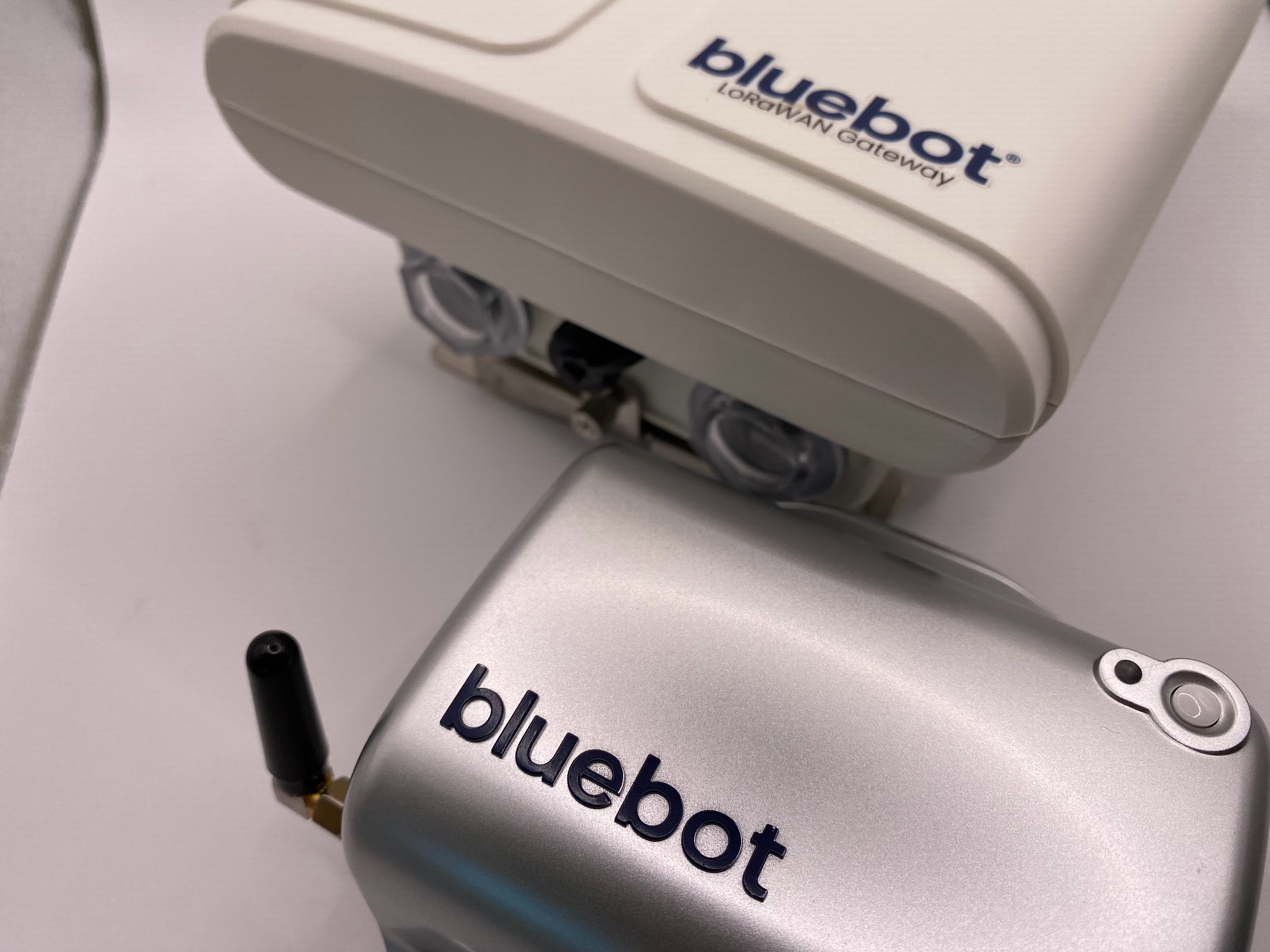

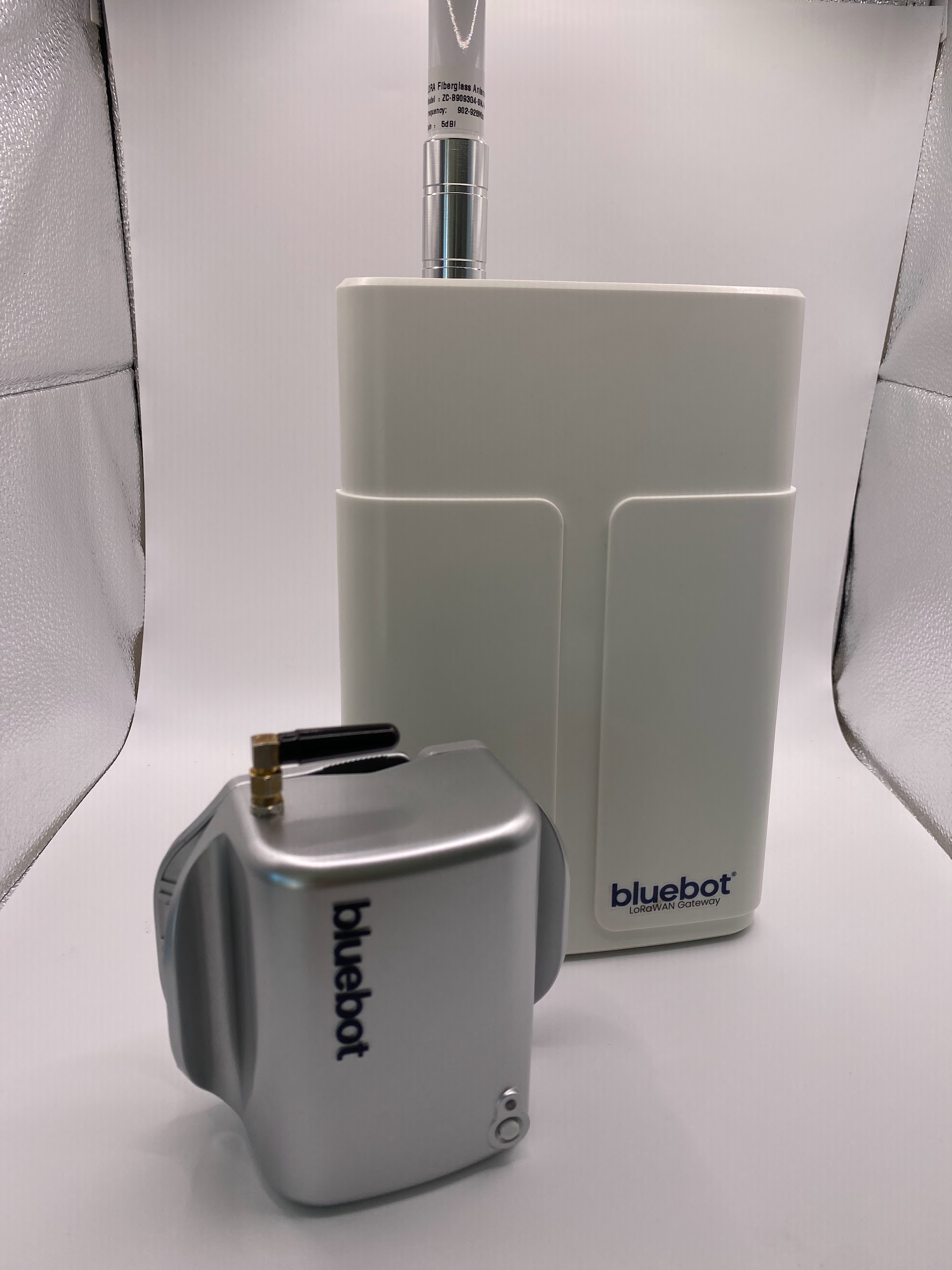

• Works with Bluebot ProLink smart flow meters
• Supports Ethernet, Wi-Fi and 3G/4G/LTE cellular
• LoRaWAN Regions US915 / KR920 / AU915
• Supports up to 100 units in ideal situations; Add units to expand coverage
• Range: Approximately 1.2 miles and 8 mile (12km) line of sight

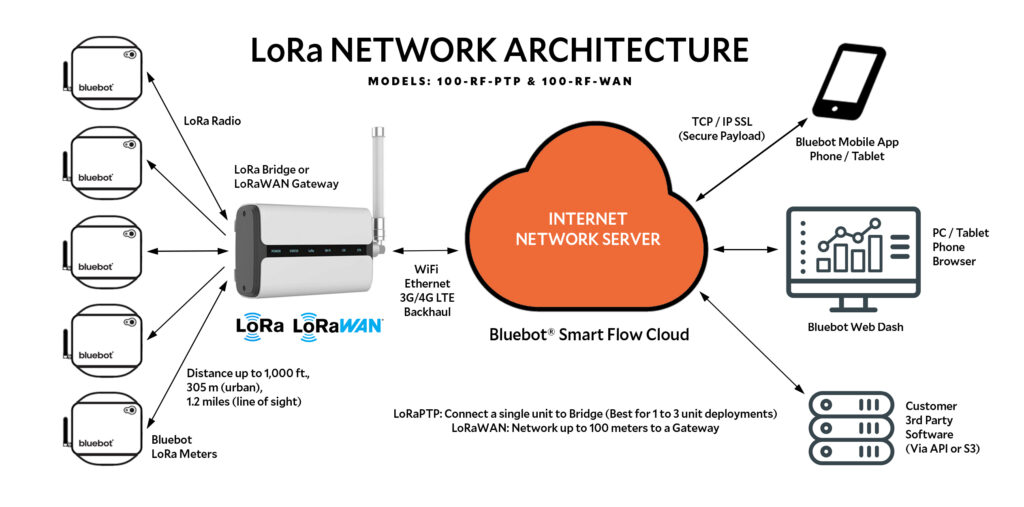

• Flow meters auto-connect to LoRaWAN Network and internet

Specifications

• Quad-core industrial processor with large memory
• Equip with SX1302 chip to handle a higher amount of traffic with lower consumption
• 8 half/full-duplex channels
• IP67 industrial waterproof indoor/outdoor
• Input Power: Included DC power supply or use PoE (Power Over Ethernet)

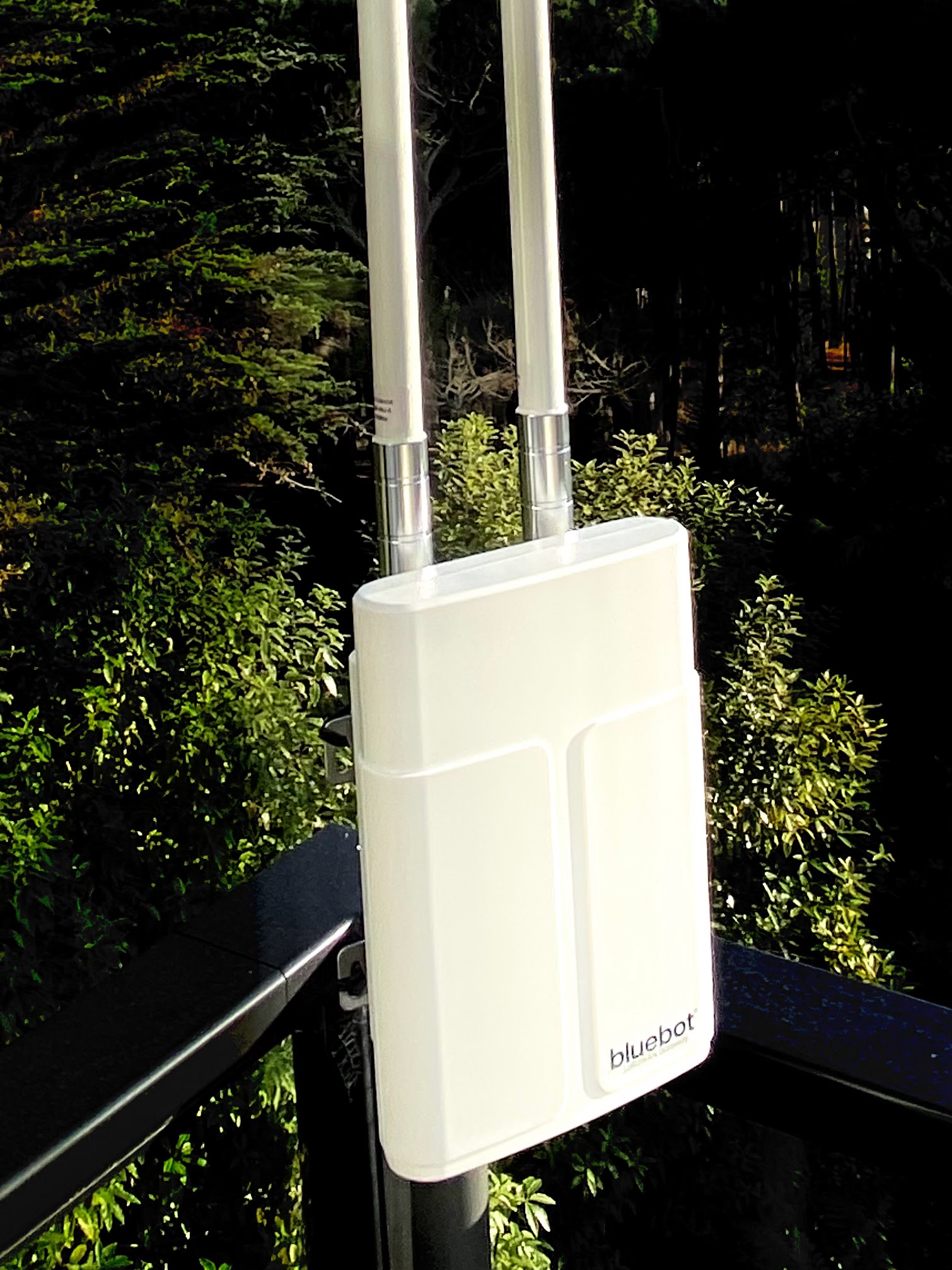

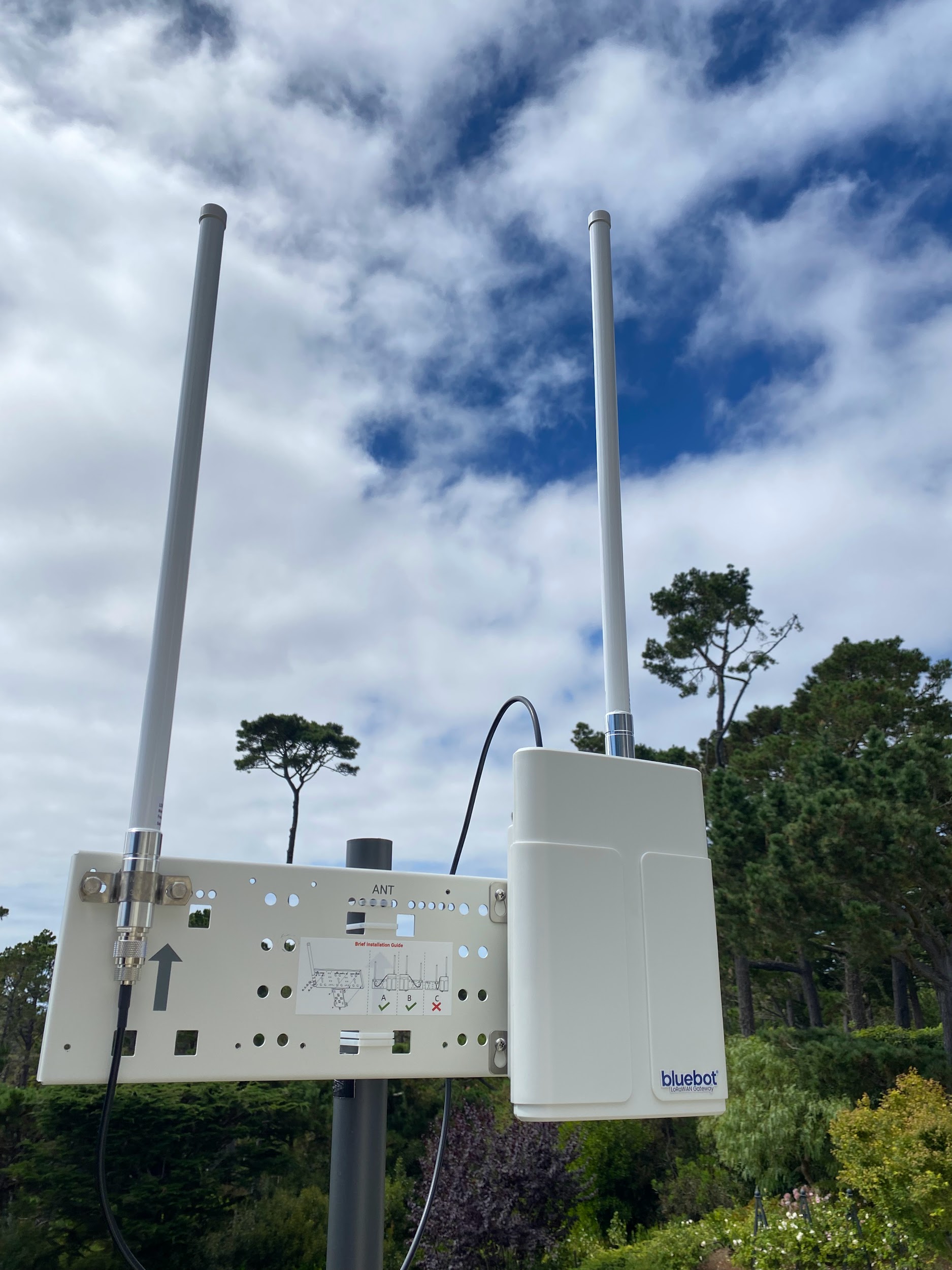

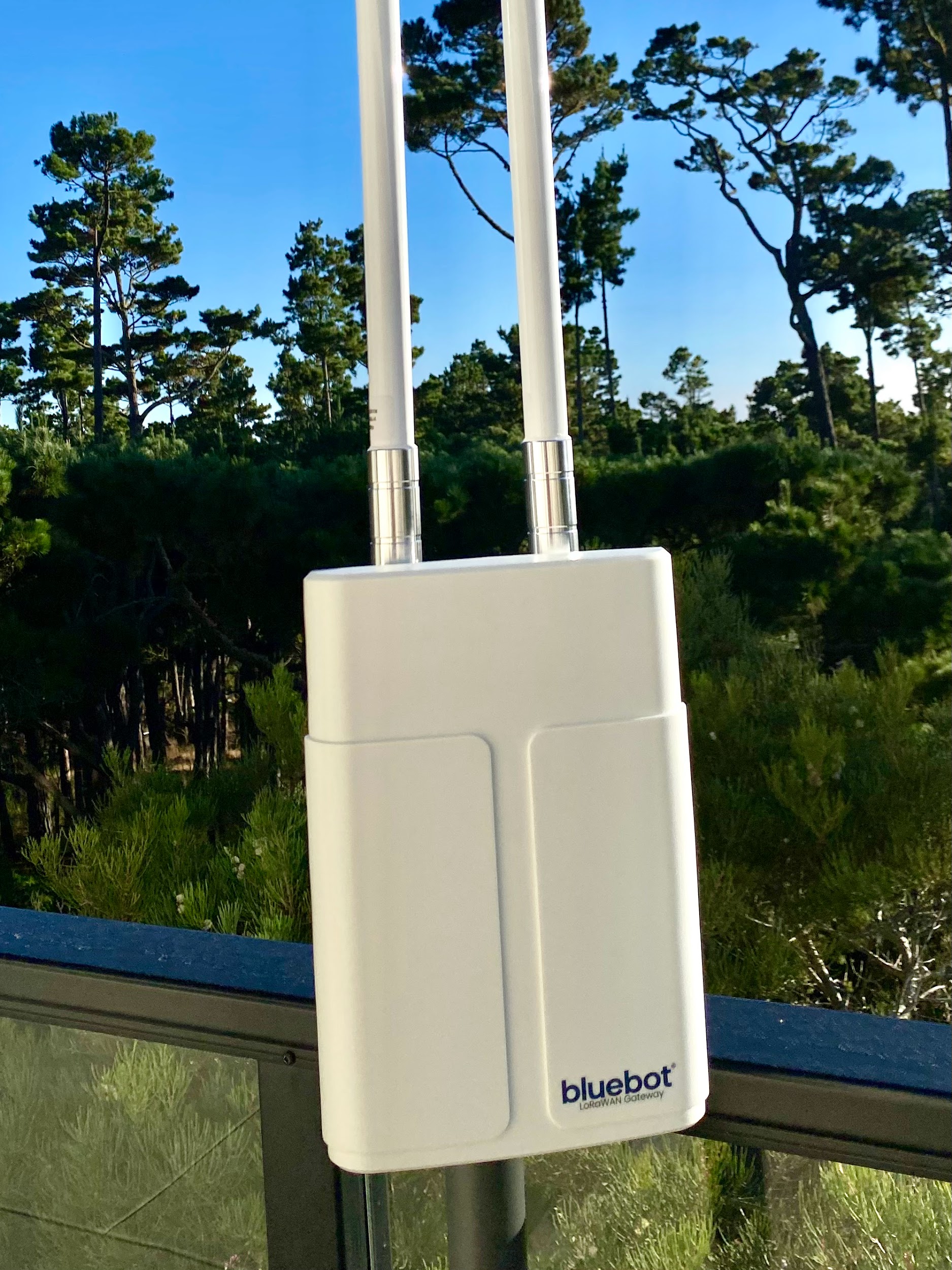

• Rack, wall or pole mounting – Kit included
• Several standard backhaul options: Ethernet, cellular (3G/4G LTE) and Wi-Fi
• Enable security communication with multiple VPNs like IPsec /OpenVPN /L2TP /PPTP /DMVPN
• Compatible with mainstream network servers like The Things Industries, ChirpStack, Actility, Everynet, etc.
• Built-in network server and MQTT/HTTP/HTTPS

Hardware System

• CPU Quad-core 1.5 GHz, 64-bit ARM Cortex-A53
• Memory 512 MB DDR4 RAM
• Flash 8 GB eMMC

LoRaWAN®

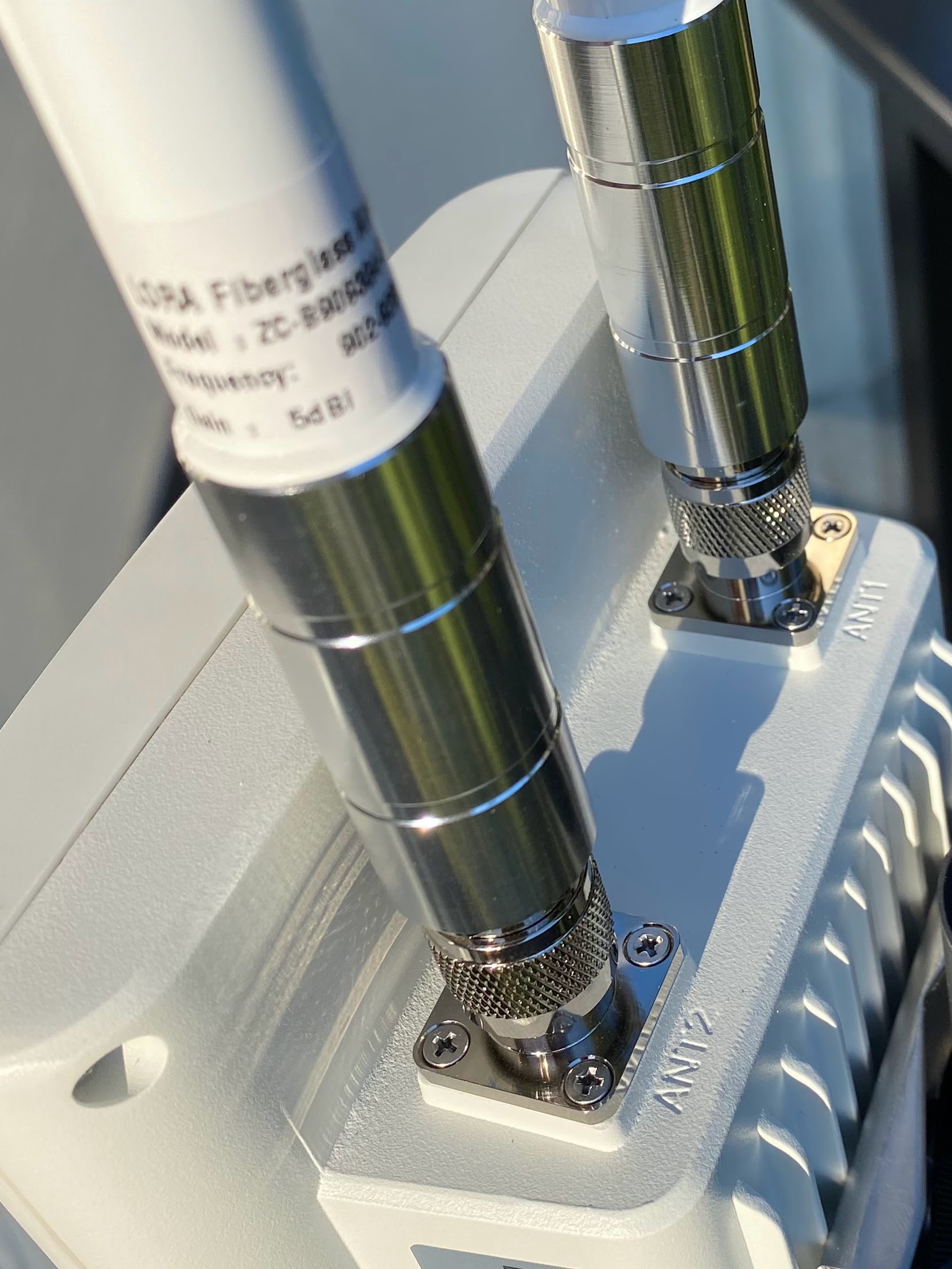

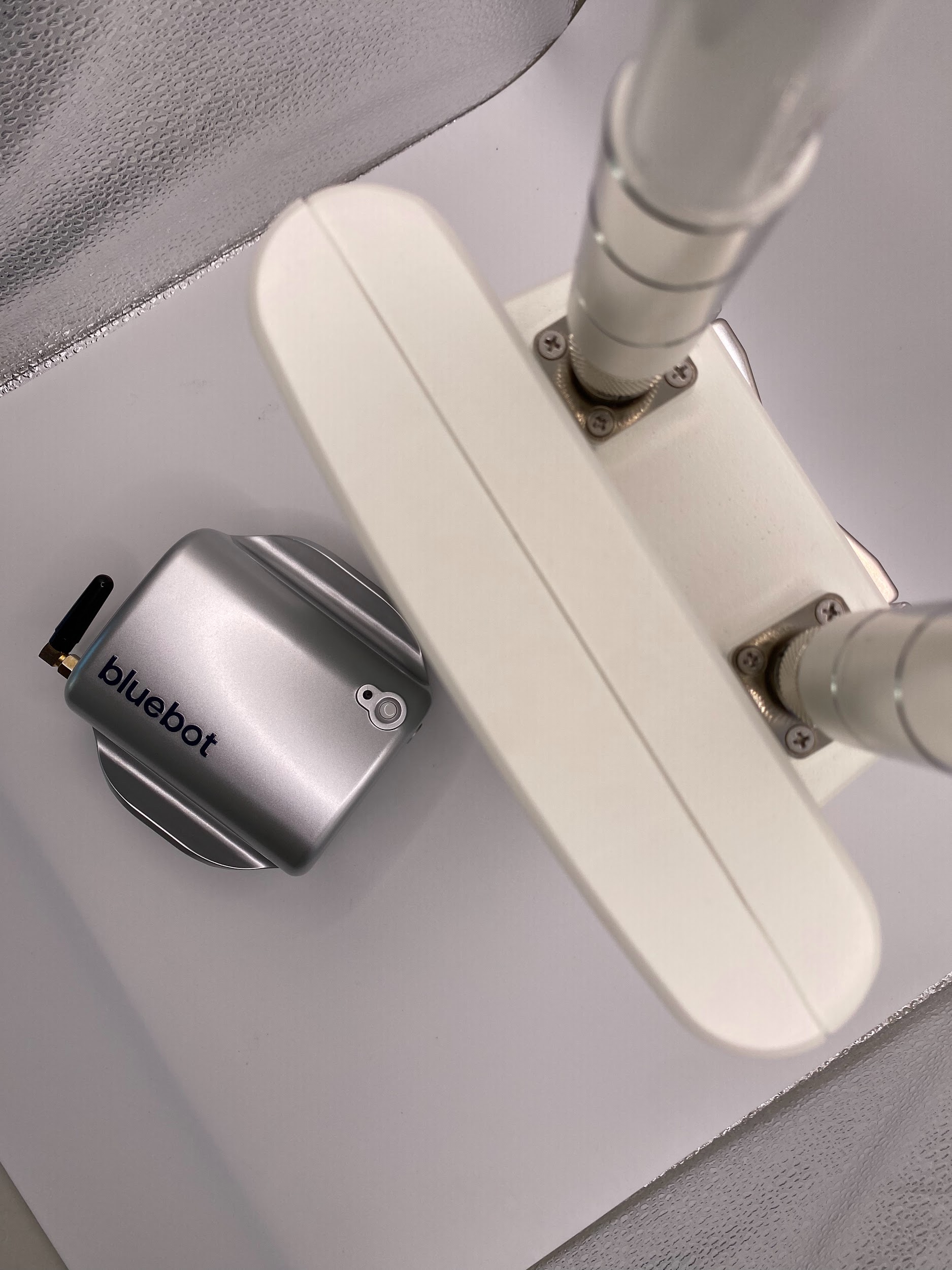

• 2 × long range, single, dual, or remote mount 23″ antennas (Optional: 1 × 50 Ω N-Female External Connector)
• Channel 8 (Half/Full-duplex)
• Frequency Band:  US915
• Sensitivity -140dBm Sensitivity @292bps
• Output Power: 27dBm Max
• Protocol: V1.0 Class A/Class B/Class C and V1.0.2 Class A/Class B/Class C

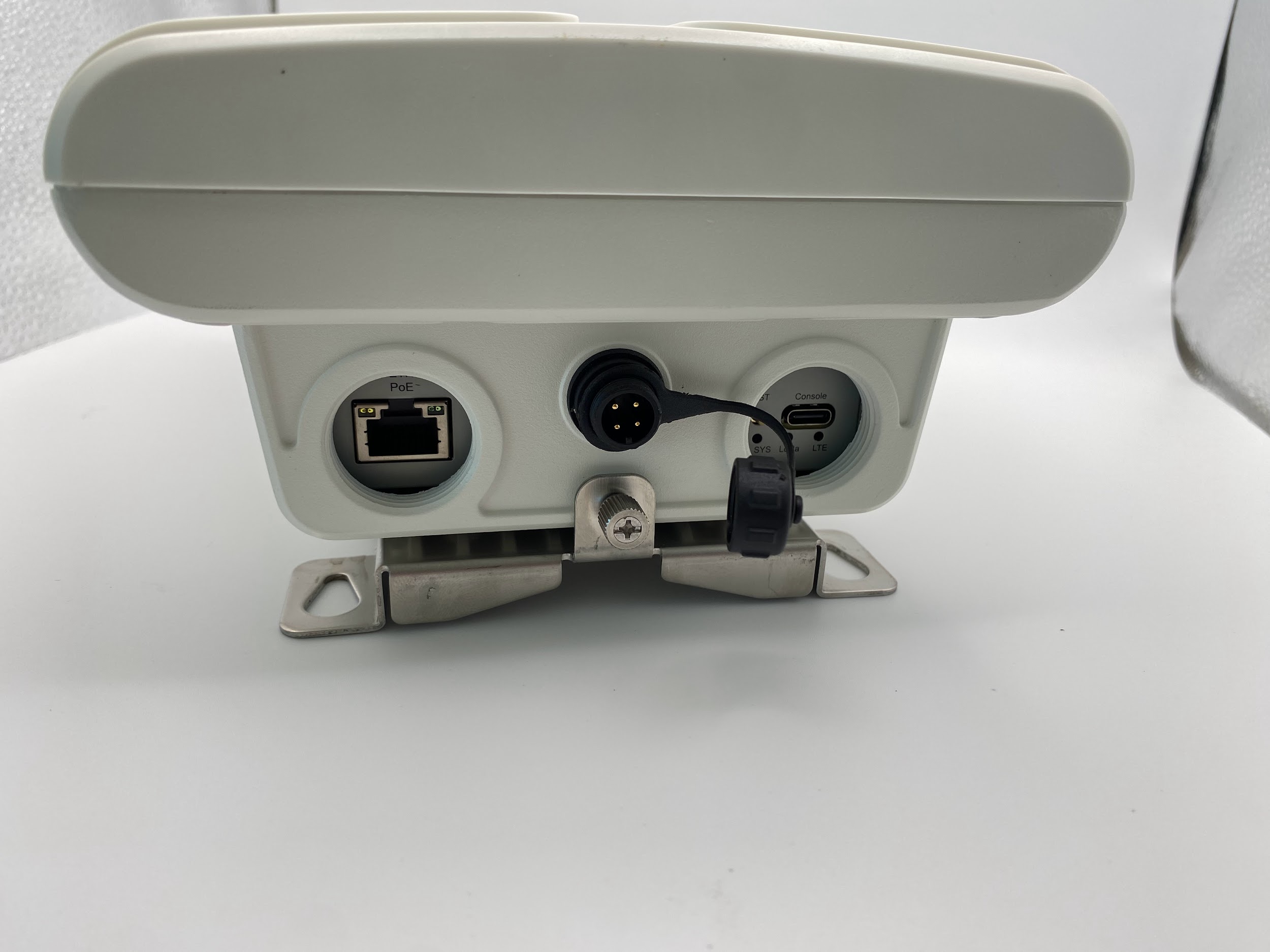

Ethernet Interface

Port 1 × RJ45 (PoE PD supported)

Physical Layer 10/100/1000 Base-T (IEEE 802.3)

Data Rate 10/100/1000 Mbps (Auto-Sensing)

Interface Auto MDI/MDIX

Mode Full or Half Duplex (Auto-Sensing)

Wi-Fi Interface

• Antenna Internal Antenna
• Standards IEEE 802.11 b/g/n, 2.4GHz
• Mode AP or Client mode
• Security WPA/WPA2 authentication, WEP/TKIP/AES encryption
• Tx Power (See list below)

802.11b: 18 dBm +/-2.0 dBm (11 Mbps)

802.11g: 15 dBm +/-2.0 dBm (6 Mbps)

802.11g: 15 dBm +/-2.0 dBm (54 Mbps)

802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS0_HT20)

802.11n@2.4 GHz: 14 dBm +/-2.0 dBm (MCS7_HT20)

802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS0_HT40)

802.11n@2.4 GHz: 13 dBm +/-2.0 dBm (MCS7_HT40)

Cellular Interface (Optional)

• Internal Antenna
• SIM Slot 1 (mini SIM-2FF); Customer supplied

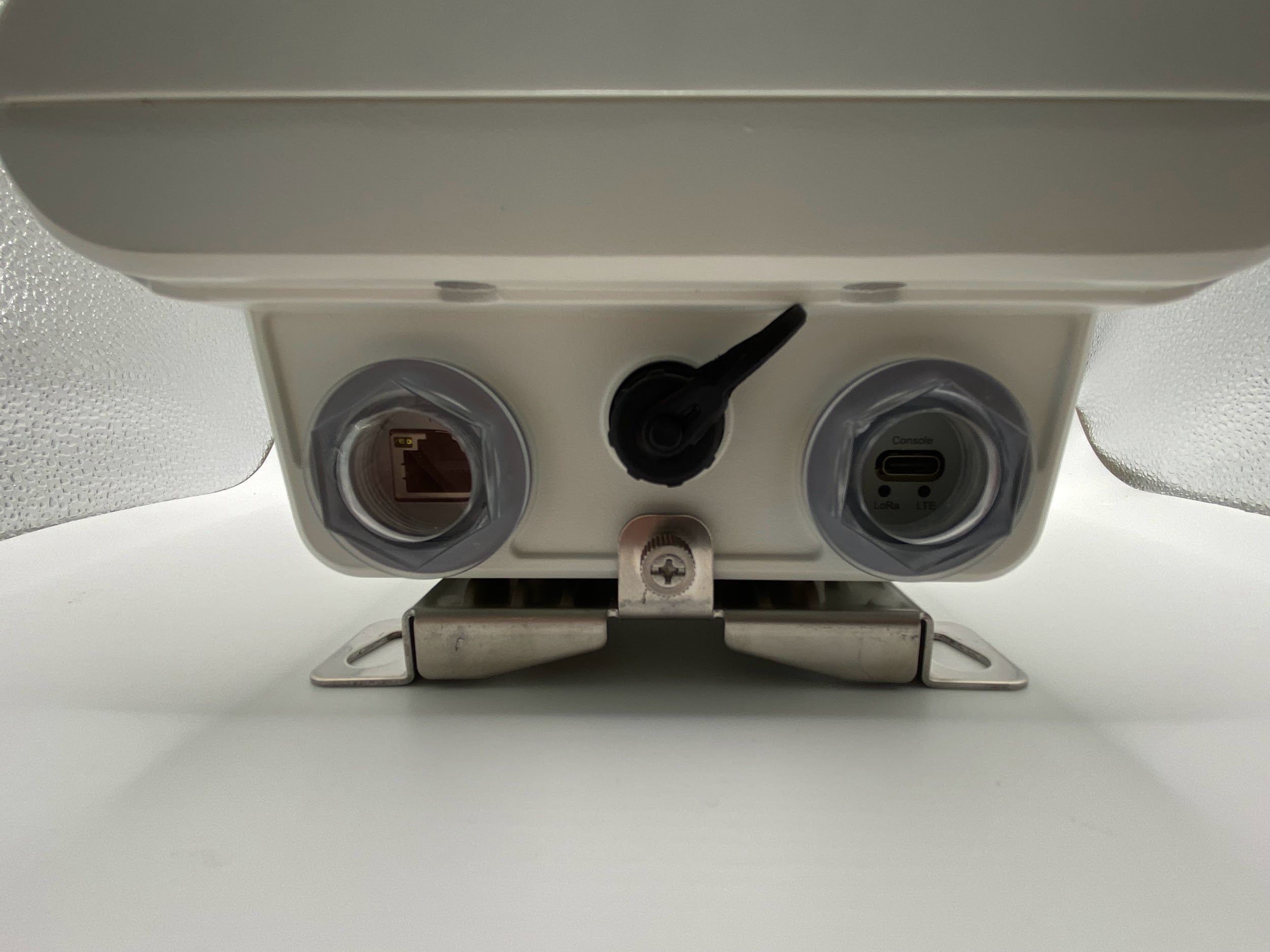

Usability Features

• Reset Button 1 × RST
• Console Port 1 × Type-C
• LED Indicators 1 × POWER, 1 × STATUS, 1 × LoRa, 1 × Wi-Fi, 1 × LTE, 1 × ETH
• Built-in Watchdog, RTC, Timer

Software

• Network Protocols (See list below)
  PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, DDNS, HTTP, HTTPS, DNS, ARP, SNTP, Telnet, SSH, MQTT, etc. VPN Tunnel OpenVPN/IPsec/PPTP/L2TP/GRE/DMVPN
  Firewall ACL/DMZ/Port Mapping/MAC Binding/URL Filter

Power Supply and Consumption

• Power Input

1. 9-24 VDC by DC Male Jack Connector
2. 1 × 802.3 af PoE input

• Power Consumption Typical 2.9 W, Max 4.2 W

Physical Characteristics

• Dimensions 180 x 110 x 56.5 mm (7.09 x 4.33 x 2.22 in)
• Desktop, Wall or Pole Mounting kit
• Operating Temperature

-40°C to +70°C (-40°F to +158°F)

Reduced Cellular Performance Above 60°C

Storage Temperature -40°C to +85°C (-40°F to +185°F)

• Ethernet Isolation 1.5 kV RMS
• Relative Humidity 0% to 95% (non-condensing) at 25°C/77°F

Approvals

• Regulatory CE, FCC, IC
• Environmental RoHS, REACH
